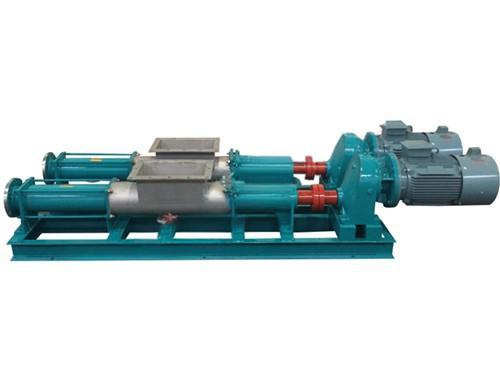

1. Introduction to Rotor Alignment in Screw Pumps

Rotor alignment in screw pumps refers to the precise positioning of the screw rotors relative to each other, to the pump housing, and to the drive shaft or motor. In multi?screw pump designs, even small misalignment between rotors, bearings and sealing elements can significantly reduce efficiency, increase wear, and cause premature failure.

Because screw pumps are positive displacement machines with tight internal clearances, correct rotor alignment is essential for:

• Maintaining correct inter?screw clearances
• Minimizing mechanical contact and friction
• Reducing vibration and noise levels
• Protecting bearings and mechanical seals
• Ensuring stable flow and pressure
• Extending mean time between failures (MTBF)

This article focuses on practical, field?oriented rotor alignment techniques for screw pumps, suitable for maintenance engineers, reliability professionals, and pump operators.

2. Basics of Screw Pump Rotor Alignment

2.1 Types of Screw Pumps and Alignment Implications

Different screw pump designs impose different rotor alignment requirements. Typical screw pump types include:

• Single?screw (progressing cavity) pumps – one metallic rotor inside an elastomeric stator. Alignment focuses on rotor–stator fit and drive shaft alignment.
• Twin?screw pumps – two intermeshing rotors, typically timed by external gears. Alignment focuses on rotor?to?rotor and rotor?to?housing clearances, as well as drive and driven ends.
• Triple?screw pumps – one driven screw and two idler screws. Alignment focuses on central rotor geometry, idler engagement and overall pump shaft alignment.
• Multi?screw specialized pumps – combinations for high?pressure or high?viscosity applications, with strict alignment tolerances.

2.2 Alignment Axes and Terminology

Effective rotor alignment techniques for screw pumps must consider:

• Horizontal and vertical planes – shaft centerline position relative to base and housing.
• Angular misalignment – angle between coupled shafts or between rotor and housing axis.
• Offset (parallel) misalignment – lateral displacement between shaft centerlines.
• Axial position – rotor location along the shaft, affecting end clearances.
• Thermal growth – changes in alignment due to temperature differences during operation.

2.3 Typical Misalignment Symptoms

Poor rotor alignment in screw pumps can cause:

• Irregular wear patterns on rotors and stator or housing
• Premature bearing and seal failures
• Increased noise and vibration levels
• Elevated power consumption
• Recurrent coupling failures
• Reduced volumetric efficiency and unstable flow
• Overheating of pump casing and bearings

3. Overview of Rotor Alignment Techniques for Screw Pumps

Rotor alignment techniques for screw pumps can be grouped into three main categories:

1. Conventional mechanical alignment methods – feeler gauges, straightedge, dial indicators.
2. Advanced optical and laser alignment methods – laser shaft alignment systems.
3. Analytical and diagnostic techniques – vibration analysis, thermography and geometric measurement.

4. Conventional Rotor Alignment Methods for Screw Pumps

4.1 Straightedge and Feeler Gauge Alignment

For small, less critical screw pumps, a basic alignment with straightedge and feeler gauge may be acceptable. While this method is not ideal for high?speed or high?pressure applications, it remains common in many facilities.

4.1.1 Summary of the Straightedge Method

• Used primarily for coarse shaft alignment between pump and driver.
• Suitable for low?speed screw pumps or preliminary positioning before fine alignment.
• Relies on visual checks and gauge measurement of coupling gap.

4.2 Dial Indicator Alignment (Face and Rim / Reverse Indicator)

Dial indicator methods are widely regarded as reliable rotor alignment techniques for screw pumps in industrial environments. Properly executed, they provide accurate measurements of both offset and angular misalignment.

4.2.1 Common Dial Indicator Configurations

• Rim and Face method – one dial measures axial movement (face), another measures radial movement (rim).
• Reverse indicator method – two dial indicators mounted on opposite shafts, measuring relative movement.

4.2.2 Advantages of Dial Indicator Methods

• Relatively low?cost hardware.
• High precision if correctly mounted and zeroed.
• No requirement for power supply or electronic devices.
• Widely documented calculation techniques and correction formulas.

4.2.3 Typical Alignment Procedure Using Reverse Indicator Method

1. Mount brackets and dial indicators on pump and driver shafts.
2. Zero the dials at a common starting position (usually top?dead?center, 12 o'clock).
3. Rotate the shafts together at 90° increments and record readings.
4. Calculate vertical and horizontal offsets and angular misalignment.
5. Determine required shim changes and lateral moves at pump or motor feet.
6. Implement corrections, re?measure and fine?tune until within tolerance.

5. Laser Rotor Alignment Techniques for Screw Pumps

Laser alignment systems have become one of the preferred rotor alignment techniques for screw pumps, especially in facilities that prioritize asset reliability and predictive maintenance.

5.1 Principle of Laser Shaft Alignment

A typical laser alignment system consists of a laser emitter and a sensor (or two bi?directional units) mounted on opposite shafts. As the shafts are rotated, the system records relative position data and automatically calculates:

• Offset misalignment at the coupling.
• Angular misalignment between shafts.
• Required corrections at machine feet.
• Live move feedback during shim adjustments.

5.2 Benefits of Laser Alignment for Screw Pumps

• Speed – reduces alignment time compared to manual methods.
• Accuracy – high?resolution sensors improve repeatability and reduce human error.
• Documentation – data storage and reporting help demonstrate compliance with reliability standards.
• Thermal and dynamic compensation – many systems can include target values for thermal growth and operational conditions.

5.3 Application to Screw Pump Rotor Alignment

Laser systems are particularly effective for:

• Aligning screw pump shafts to electric motors, gearboxes, or turbines.
• Ensuring co?axiality in multi?screw pump cartridges installed in a common housing.
• Aligning drive trains where screw pumps share baseplates with other rotating equipment.

6. Geometric and Metrology-Based Alignment Techniques

In addition to traditional and laser methods, rotor alignment techniques for screw pumps can employ precision geometric tools for OEM manufacturing, overhaul, or high?accuracy installations.

6.1 Common Geometric Tools Used

• Precision levels and machinist levels.
• Optical or digital theodolites.
• Coordinate measuring machines (CMM) for rotor geometry checks.
• Bore gauges and inside micrometers to verify housing concentricity.
• Surface plates, V?blocks and mandrels for rotor inspection.

6.2 When to Use Geometric Alignment

These techniques are typically used when:

• Building new screw pump units and verifying manufacturing tolerances.
• Rebuilding worn or damaged pumps with new or reconditioned rotors.
• Investigating chronic failures suspected to be related to geometry errors.

7. Internal Rotor Alignment Specific to Screw Pump Designs

Beyond shaft?to?shaft alignment, screw pumps require careful internal rotor alignment. This includes rotor?to?rotor, rotor?to?housing and rotor?to?stator relationships.

7.1 Single-Screw (Progressing Cavity) Pump Rotor Alignment

In single?screw pumps, a metallic rotor rotates inside an elastomeric stator with a specific interference fit.

• Alignment focuses on concentricity and axial positioning of the rotor within the stator.
• Incorrect rotor alignment can cause local over?compression of the elastomer or insufficient sealing, leading to internal slip.
• Drive joint and coupling alignment are critical to maintain correct orbital motion.

7.2 Twin-Screw Pump Rotor Alignment

Twin?screw pumps have two intermeshing rotors that are usually synchronized by external timing gears.

• Critical parameters include radial clearance, axial end clearance and timing gear phasing.
• Rotor alignment techniques typically involve checking:

• • Gearbox alignment to rotor shafts.
  • Endplay and axial float settings.
  • Radial position relative to casing bores.

7.3 Triple-Screw Pump Rotor Alignment

Triple?screw pumps use one central power rotor and two idler rotors that mesh with the power rotor.

• The power rotor is directly driven, and idlers are supported by the pump housing.
• Alignment must ensure proper line?of?contact and load distribution between screws.
• Misalignment can cause uneven loading, score marks on rotor flanks and reduced efficiency.

8. Alignment Tolerances and Applicable Standards

Acceptable rotor alignment tolerances for screw pumps depend on operating speed, power, pump size, and service criticality. While exact values are determined by each manufacturer, industry standards provide general guidance.

8.1 Factors Influencing Alignment Tolerances

• Rotational speed – higher RPM requires tighter alignment.
• Coupling type – flexible couplings can accommodate some misalignment but should not be used to mask poor alignment.
• Pump duty – continuous operation and high?pressure services require stricter tolerances.
• Shaft length between bearings – longer spans are more sensitive to misalignment.

8.2 Typical Alignment Tolerances (Indicative)

The following table provides indicative, non?binding alignment tolerances that are often used as reference values. Final targets should always follow pump and coupling manufacturer recommendations.

8.3 Relevant Industry Standards and Guidelines

While rotor alignment techniques for screw pumps are not governed by a single universal standard, the following documents and practices are often referenced:

• ISO and API rotating equipment standards for shaft alignment philosophy and general tolerances.
• Manufacturer installation manuals defining pump?specific alignment targets.
• Vibration severity standards that help confirm acceptable alignment via condition monitoring.

9. Step-by-Step Rotor Alignment Procedure for Screw Pumps

This section describes a generalized alignment procedure for a screw pump coupled to an electric motor, combining best practices from multiple rotor alignment techniques.

9.1 Pre?Alignment Checks

• Verify baseplate integrity, levelness and grouting quality.
• Inspect coupling type, hubs and keys for damage or wear.
• Confirm that bearings and seals are correctly installed.
• Remove piping strain or support piping to eliminate external forces.
• Perform soft?foot check on pump and motor feet.

9.2 Rough Alignment

• Place the pump and motor in approximate positions on the base.
• Use a straightedge to obtain a visual alignment of coupling hubs.
• Shim under feet to ensure basic horizontal and vertical positioning.

9.3 Fine Alignment Using Dial or Laser Techniques

1. Install dial indicator brackets or laser heads on pump and motor shafts.
2. Zero the system and rotate shafts in the same direction through the measurement positions.
3. Record raw data and allow the system (or manual calculations) to determine required corrections.
4. Adjust shims under the movable machine (typically the motor) to correct vertical misalignment.
5. Slide the movable machine laterally to correct horizontal misalignment.
6. Re?measure until alignment values fall within defined tolerances.

9.4 Internal Rotor Checks

For screw pumps with complex internals (twin?screw, triple?screw), additional internal rotor alignment checks may be required:

• Confirm correct phasing by checking timing gear positions.
• Measure end gap/clearance using feeler gauges or dial indicators.
• Verify radial clearances against manufacturer specifications.

9.5 Final Verification

• Fully tighten all foundation bolts and recheck alignment.
• Verify coupling installation and torque of coupling bolts.
• Record alignment data for future reference.
• During run?in, monitor vibration, noise and temperature trends.

10. Benefits of Proper Rotor Alignment for Screw Pumps

Using robust rotor alignment techniques for screw pumps generates measurable benefits across the entire life cycle of the equipment.

10.1 Mechanical Benefits

• Reduced bearing and seal loads, extending service life.
• Lower risk of rotor contact and internal damage.
• Decreased coupling wear and fewer coupling failures.

10.2 Operational Benefits

• Stable flow rate and discharge pressure.
• Lower operating noise and vibration levels.
• Improved energy efficiency through reduced mechanical losses.
• Fewer unscheduled shutdowns caused by alignment?related issues.

10.3 Economic Benefits

• Reduced maintenance costs and spare parts consumption.
• Extended mean time between failures (MTBF).
• Improved overall equipment effectiveness (OEE) in pump?based systems.

11. Troubleshooting Misalignment in Screw Pumps

Even after careful alignment, operating conditions may change, leading to misalignment over time. Monitoring and diagnostics help detect these conditions early.

11.1 Common Signs of Misalignment

• Rapid seal, bearing or coupling failures.
• Uneven temperature distribution across the pump casing.
• Unusual wear marks on rotor surfaces and housing.
• Elevated vibration amplitudes at rotational frequencies.

11.2 Diagnostic Techniques

• Vibration analysis – patterns indicating angular or parallel misalignment.
• Thermal imaging – detection of hot spots on bearings or housings.
• Oil analysis – detection of wear particles from gears, bearings or rotor surfaces.
• Performance trending – monitoring flow, pressure and power consumption over time.

12. Best Practices for Rotor Alignment in Screw Pump Installations

Implementing structured, repeatable best practices ensures that rotor alignment techniques for screw pumps produce consistent results across different sites and teams.

12.1 Installation Best Practices

• Use a rigid, properly grouted baseplate to minimize deflection.
• Avoid excessive piping forces by installing adequate supports and expansion joints.
• Apply correct torque values to all mounting and coupling bolts.
• Protect alignment surfaces from corrosion and contamination.

12.2 Alignment Process Best Practices

• Always check and correct soft?foot before starting fine alignment.
• Use consistent reference positions when rotating shafts for measurements.
• Take multiple readings to verify repeatability and eliminate outliers.
• Document pre?alignment and post?alignment data in maintenance records.

12.3 Operational and Maintenance Best Practices

• Schedule periodic alignment verification for critical screw pump trains.
• Combine alignment checks with vibration analysis and thermography surveys.
• Inspect couplings, bearings and seals for early signs of misalignment stress.
• Train maintenance staff on the correct use of dial indicators and laser systems.

13. Selecting the Right Rotor Alignment Technique for Screw Pumps

No single method is ideal for all conditions. The right rotor alignment technique for screw pumps depends on several decision factors.

13.1 Decision Factors

• Pump size, speed and power rating.
• Criticality of the service (production impact, safety, environment).
• Available equipment and technician skill levels.
• Budget constraints and maintenance strategy (reactive, preventive, predictive).

13.2 Technique Selection Matrix

14. Frequently Asked Questions About Rotor Alignment Techniques for Screw Pumps

14.1 How often should screw pump rotor alignment be checked?

Alignment verification intervals depend on operating conditions and criticality. Many facilities check alignment:

• At initial commissioning.
• After any major maintenance involving pump removal.
• Following foundation repairs or piping modifications.
• Periodically (for example annually) for critical pumps.

14.2 Can flexible couplings compensate for poor alignment?

Flexible couplings are designed to accommodate small residual misalignment and reduce transmitted vibration, but they should not be used to compensate for poor rotor alignment. Relying on coupling flexibility alone can lead to premature wear and failures.

14.3 Do thermal effects significantly influence screw pump alignment?

Yes. Temperature changes in the pump, driver and baseplate can cause expansion and shift alignment. Advanced alignment techniques for screw pumps incorporate estimated thermal growth into target values so that alignment will be correct at operating temperature.

14.4 Is laser alignment always better than dial indicators?

Laser systems generally provide faster and more repeatable measurements, but well?executed dial indicator methods can still achieve excellent accuracy. The choice depends on available tools, budget, and technician experience.

15. Conclusion

Reliable operation of screw pumps depends heavily on precise rotor alignment. A structured approach that combines appropriate rotor alignment techniques for screw pumps—ranging from basic mechanical methods to advanced laser and geometric tools—helps optimize performance, extend equipment life, and reduce lifecycle costs.

By understanding internal and external alignment requirements, adhering to realistic tolerances, and following best practices, maintenance and reliability teams can significantly improve the efficiency and reliability of screw pump installations in virtually any industry.
