1. Overview: Screw Pumps and Material Selection

A screw pump is a positive displacement pump that uses one or more intermeshing screws

to move fluid along the pump axis. Screw pumps offer smooth, pulsation-free flow,

excellent suction performance and the ability to handle viscous, shear-sensitive or

particle-laden media. Common designs include:

• Single screw pumps (progressive cavity pumps)
• Twin screw pumps (double screw pumps)
• Triple screw pumps (three screw spindle pumps)
• Multi-screw high-pressure pumps

Regardless of configuration, the performance and lifetime of a screw pump are strongly

influenced by the materials used for the pump casing, rotor(s), stator, shaft, wear

parts and seals. Among the various options, stainless steel has become the reference

material for many industrial, chemical and hygienic applications.

The main reasons for the dominance of stainless steel in screw pump manufacturing are:

• Excellent corrosion resistance across a wide range of fluids
• High mechanical strength and fatigue resistance
• Superior hygiene and cleanability for sanitary processes
• Compatibility with high temperatures and aggressive cleaning regimes
• Availability in many grades tailored to specific applications

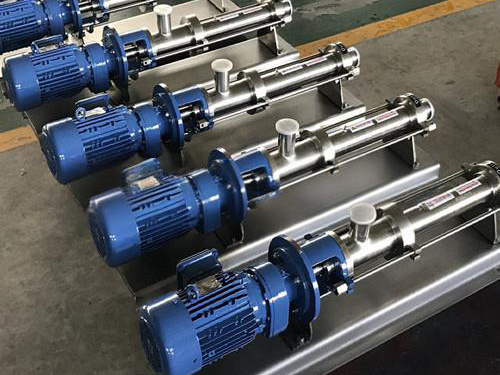

These characteristics make stainless steel screw pumps a preferred choice in

industries such as food and beverage, dairy, brewing, pharmaceuticals, cosmetics,

biotechnology, fine chemicals, water treatment and marine engineering.

2. What Is Stainless Steel in the Context of Screw Pumps?

Stainless steel is a family of iron-based alloys containing a minimum of 10.5% chromium,

with varying amounts of nickel, molybdenum and other elements. The high chromium content

forms a passive, self-healing oxide layer on the surface, which gives stainless steel

its corrosion-resistant properties.

For screw pump manufacturing, the most commonly used stainless steels are:

• Austenitic stainless steels such as 304, 304L, 316 and 316L
• Duplex stainless steels such as 2205 for higher strength and chloride resistance
• Special austenitic grades such as 904L or 254SMO for very aggressive media

2.1 Key Stainless Steel Grades Used in Screw Pumps

In many screw pump designs, different stainless steels are used for different

components to balance cost, mechanical performance and corrosion resistance.

3. Key Advantages of Stainless Steel for Screw Pump Manufacturing

When comparing stainless steel to alternatives such as cast iron, carbon steel,

bronze or plastic composites, several advantages stand out. These advantages explain

why stainless steel is an ideal material for screw pump manufacturing in critical

industrial applications.

3.1 Corrosion Resistance

Stainless steel’s resistance to general corrosion, pitting and crevice attack is a

major reason for its widespread use. Screw pumps often handle:

• Chloride-containing solutions such as brines and process water
• Organic acids, weak inorganic acids and cleaning chemicals
• Salty and mildly acidic food products such as sauces or dairy by-products
• Pharmaceutical and cosmetic formulations with varying pH

The passive chromium oxide layer of stainless steel significantly reduces material

loss and surface degradation in these environments, extending pump life and

maintaining performance. Alloying with molybdenum (e.g., 316L) further improves

resistance to localized corrosion, which is important in crevices and threaded areas

of the screw pump.

3.2 Mechanical Strength and Stability

Screw pumps must withstand internal pressure, torque, axial loads and possible

transient pressure spikes (water hammer). Stainless steel provides:

• High tensile and yield strength for compact yet robust pump designs
• Good fatigue resistance for continuous duty cycles
• Dimensional stability at elevated temperatures

Duplex stainless steels offer even higher strength, allowing thinner walls and

lighter components without sacrificing safety factors. This is especially valuable

for multi-screw high-pressure pumps used in oil and gas, marine and power

generation.

3.3 Hygiene and Cleanability

For sanitary screw pumps in food, beverage, dairy, biotech and pharmaceutical

processes, material selection must support:

• Low surface roughness to minimize bacterial adhesion
• Compatibility with CIP (Clean-in-Place) and SIP (Steam-in-Place) regimes
• Non-toxicity and regulatory compliance

Austenitic stainless steels such as 316L are the industry standard in these

applications. They maintain a smooth, non-porous surface even after repeated thermal

cycling and exposure to high-concentration cleaning agents (caustic solutions,

acids, oxidizing sanitizers). Properly polished and passivated stainless steel

surfaces ensure that the screw pump can be cleaned reliably between batches or

product changes.

3.4 Temperature Resistance

Stainless steel screw pumps often operate with fluids at elevated temperatures or

must tolerate thermal shocks during sterilization. Stainless steel:

• Retains mechanical strength over a wide temperature range
• Resists scaling, oxidation and structural changes at process temperatures
• Allows direct steam sterilization (SIP) for hygienic systems

This broad temperature compatibility reduces design constraints and makes stainless

steel suitable for hot oils, thermal fluids, condensate and other high-temperature

media.

3.5 Surface Finish and Wear Behavior

In screw pumps, clearances between rotating and stationary components are critical

to achieve volumetric efficiency and minimize slip. Stainless steel provides:

• Excellent machinability and grindability for tight tolerances
• Good compatibility with surface treatments and polishing
• Stable surface hardness when combined with appropriate heat treatment or coatings

Although stainless steel is not the hardest material available, it strikes a

favorable balance between wear resistance, corrosion resistance and ease of

manufacturing. In abrasive applications, surface hardening or the use of hardened

sleeves and wear rings can be combined with stainless steel housings.

3.6 Chemical Compatibility and Low Contamination Risk

Many processes require that the pump material does not leach harmful substances into

the product. Stainless steel:

• Is chemically inert in a wide variety of process media
• Does not release plasticizers or organic compounds
• Minimizes metallic ion contamination when correctly specified

This is crucial in industries where product purity, taste, color and biological

stability are paramount. For example, stainless steel screw pumps are widely used

for transferring wine, beer, fruit juice, creams, emulsions and pharmaceutical

intermediates.

3.7 Lifecycle Cost and Sustainability

While the initial cost of stainless steel screw pumps may be higher than carbon

steel or cast iron alternatives, lifecycle cost is often lower due to:

• Reduced downtime from corrosion-related failures
• Lower maintenance frequency and spare parts consumption
• Longer operating life and predictable performance
• High recyclability at end of life

Stainless steel is fully recyclable and maintains its material value in the

secondary metals market. This supports sustainability goals and reduces the total

environmental footprint of pumping systems.

4. Stainless Steel Screw Pump Applications

The selection of stainless steel as the key material for screw pump manufacturing is

closely linked to the industries and media being handled. The following table

summarizes typical applications where stainless steel screw pumps are considered

standard.

In all of these sectors, the choice of stainless steel is motivated by the combination

of corrosion resistance, hygiene, mechanical reliability and cleanability,

which are core requirements for screw pump operation.

5. Hygienic and Sanitary Design in Stainless Steel Screw Pumps

Sanitary screw pumps are essential components in modern process lines where product

safety, regulatory compliance and hygienic design are mandatory. Stainless steel

enables screw pumps to meet key hygienic standards and guidelines.

5.1 Surface Roughness and Finishing

To prevent microbial growth and facilitate cleaning, the internal surfaces of

stainless steel screw pumps are typically specified with:

• Surface roughness Ra ≤ 0.8 μm, often Ra ≤ 0.6 μm for critical applications
• Mechanical polishing followed by electropolishing for enhanced passivation
• Crevice-free connections and smooth transitions between components

Stainless steel’s inherent workability allows manufacturers to achieve these tight

surface finish requirements reliably and repeatably.

5.2 CIP/SIP Compatibility

Clean-in-Place and Steam-in-Place systems require that the screw pump withstand:

• Hot caustic solutions and acid-based cleaners
• Superheated steam and rapid temperature cycling
• Oxidizing sanitizers such as peracetic acid

Austenitic stainless steels such as 316L are particularly well suited to these

cleaning regimes. Their corrosion resistance and stable passive film ensure that

frequent cleaning does not cause significant degradation or contamination.

5.3 Regulatory and Standards Compliance

Many Hygienic Screw Pump installations must comply with standards and guidelines

related to materials and design, such as:

• Food-contact regulations in relevant jurisdictions
• Guidelines for bioprocessing equipment
• General hygienic design principles for processing equipment

Stainless steel grades like 316L are widely recognized and accepted in these

regulations due to their long history of safe use, cleanability, and resistance to

product contamination.

6. Corrosion Resistance of Stainless Steel in Screw Pump Service

Corrosion mechanisms in screw pumps can include uniform corrosion, pitting, crevice

corrosion, stress corrosion cracking and galvanic corrosion. Stainless steel’s

passive film provides a powerful barrier, but selecting the right grade is essential.

6.1 Types of Corrosion Relevant to Screw Pumps

• Uniform corrosion: Even material loss across the surface due to

  general chemical attack.

• Pitting corrosion: Localized attack often found in chloride-rich

  environments.

• Crevice corrosion: Occurs in tight gaps such as gasket contacts,

  threads or dead zones.

• Stress corrosion cracking: Requires tensile stress and a specific

  corrosive environment, often chlorides at high temperatures.

• Galvanic corrosion: Arises when dissimilar metals are in contact

  in a conductive fluid.

6.2 Stainless Steel’s Performance Against Corrosion

The chromium content in stainless steel forms a thin oxide layer that self-heals if

damaged. The presence of molybdenum, nitrogen and higher chromium content further

improves resistance to pitting and crevice corrosion. In screw pump manufacturing:

• 304 is suitable for less aggressive media and ambient temperatures.
• 316 and 316L are preferred where chlorides, acids and higher temperatures are present.
• Duplex and super austenitic grades are selected for very harsh conditions.

6.3 Example Corrosion Resistance Comparison

By choosing appropriate stainless steel grades and surface finishes, manufacturers

can greatly reduce corrosion risk and extend the operating life of screw pumps.

7. Typical Stainless Steel Screw Pump Specifications

Screw pumps built with stainless steel encompass a wide operating range. The

following tables provide generic specification ranges commonly seen in industrial,

chemical and hygienic stainless steel screw pump installations. Actual performance

depends on specific design and configuration.

7.1 Operating Parameters

7.2 Common Material Combinations

These specifications highlight the flexibility of stainless steel for screw pump

manufacturing across different duty ranges and process conditions.

8. Design Considerations When Using Stainless Steel for Screw Pumps

While stainless steel offers many advantages, proper design and manufacturing

practices are essential to obtain the full benefits in screw pump construction.

8.1 Material Grade Selection

Selecting the correct stainless steel grade depends on:

• Fluid composition (pH, chloride content, oxidizing agents, solvents)
• Operating temperature and pressure
• Presence of solids or abrasives
• Hygienic or contamination-control requirements

For example, 316L is usually favored in sanitary and mildly corrosive processes,

while duplex grades are preferred for high-pressure, chloride-rich environments.

Specialized grades may be required for strong acids or highly oxidizing chemicals.

8.2 Surface Treatment and Passivation

Stainless steel relies on a stable passive film for corrosion resistance. Common

surface treatments include:

• Chemical pickling to remove welding residues and heat tint
• Passivation to enhance chromium oxide layer formation
• Electropolishing to smooth surface and reduce micro-roughness

Applying these treatments to all product-wetted surfaces of the screw pump helps

maintain corrosion resistance and hygienic performance over time.

8.3 Avoidance of Dead Zones and Crevices

In screw pump design, dead zones and crevices must be minimized, especially for

sanitary service. This can be achieved through:

• Optimized port geometries and internal contours
• Integral or carefully welded connections rather than threaded joints
• Use of hygienic flanges and clamp connections

Stainless steel’s weldability and formability support these design goals, allowing

pump housings to be fabricated with smooth internal transitions.

8.4 Thermal Expansion and Tolerance Management

Stainless steel exhibits thermal expansion that must be considered in screw pump

tolerancing. Rotors and casings expand as temperature increases, affecting:

• Clearances between screws and casing
• Seal compression and alignment
• Rotor-stator fit in progressive cavity pumps

Designers must account for these effects to avoid excessive contact, wear or slip

at operating temperature while still ensuring sufficient clearances during start-up

and cool-down.

8.5 Weld Quality and Heat-Affected Zones

Many stainless steel screw pump components are welded. Improper welding can impair

corrosion resistance in the heat-affected zone. Good practice includes:

• Using low-carbon grades such as 316L to reduce carbide precipitation
• Controlling heat input and weld cooling rates
• Post-weld cleaning, pickling and passivation

High-quality welds ensure that the entire internal surface of the pump behaves

consistently in corrosive media.

9. Comparison: Stainless Steel vs. Other Materials in Screw Pumps

When specifying screw pumps, engineers may consider alternative materials such as

cast iron, carbon steel, bronze or engineered plastics. The following comparison

highlights the relative advantages of stainless steel.

This comparison demonstrates that, although the purchase price of stainless steel

components may be higher, the overall benefits in corrosion resistance, hygiene and

long-term reliability make stainless steel the ideal material for screw pump

manufacturing in most demanding applications.

10. Performance Benefits of Stainless Steel Screw Pumps

Using stainless steel in screw pump manufacturing directly influences pump

performance, efficiency and product quality.

10.1 Stable Operating Characteristics

Corrosion or surface degradation can change rotor profiles, clearances and flow paths

inside a screw pump, causing:

• Reduced volumetric efficiency
• Increased slip and energy consumption
• Unpredictable flow behavior

Stainless steel’s resistance to corrosion ensures that pump geometry remains stable

over time, allowing consistent performance and predictable maintenance intervals.

10.2 Product Quality and Shear Control

Screw pumps are often chosen because they can handle delicate or shear-sensitive

products. Stainless steel rotors and casings:

• Maintain smooth surfaces that reduce localized shear points
• Allow precise control of clearances and flow channels
• Minimize contamination that could degrade product quality

This is particularly important for emulsions, suspensions, food products with

particulates and biologically active materials.

10.3 Cleaning Efficiency and Downtime Reduction

In hygienic applications, production downtime for cleaning is a significant cost.

Stainless steel screw pumps designed with CIP/SIP compatibility:

• Shorten cleaning cycles due to smooth, corrosion-free surfaces
• Reduce the risk of residue or biofilm formation
• Support automated cleaning routines with minimal intervention

This combination of performance and cleanability makes stainless steel screw pumps

an essential component in modern continuous processing lines.

11. Typical Specification Sheet Example for a Stainless Steel Screw Pump

The following example shows how technical information for a generic stainless steel

screw pump might be summarized. Values are indicative and vary depending on the

specific design and application.

Such specification sheets highlight the central role of stainless steel in defining

the performance, cleanability and durability of screw pumps across a wide range of

process conditions.

12. Conclusion: Why Stainless Steel Is the Ideal Material for Screw Pump Manufacturing

Stainless steel offers a unique combination of corrosion resistance, mechanical

strength, hygiene, cleanability, thermal stability and long-term durability. These

properties align directly with the demanding requirements placed on modern screw

pumps in industrial, chemical and sanitary applications.

By choosing stainless steel grades tailored to the process media and operating

conditions, pump designers and plant engineers can:

• Achieve reliable, long-lasting screw pump performance
• Protect product quality and purity, especially in food, beverage and pharmaceutical processes
• Minimize downtime and maintenance related to corrosion and wear
• Support efficient CIP/SIP cleaning and hygienic operation
• Optimize lifecycle cost and contribute to sustainable equipment design

For these reasons, stainless steel has become the reference material for screw pump

manufacturing and will continue to play a central role in the development of

next-generation pumping solutions for critical and hygienic applications.
