Choosing the right sludge screw pump is critical for reliable, efficient, and cost?effective sludge handling in wastewater treatment, industrial processes, and sludge dewatering applications.
The wrong pump can cause excessive wear, clogging, downtime, and operating costs.
This comprehensive guide explains the major technical and practical factors that engineers, plant operators, and maintenance teams should evaluate when selecting a sludge screw pump.

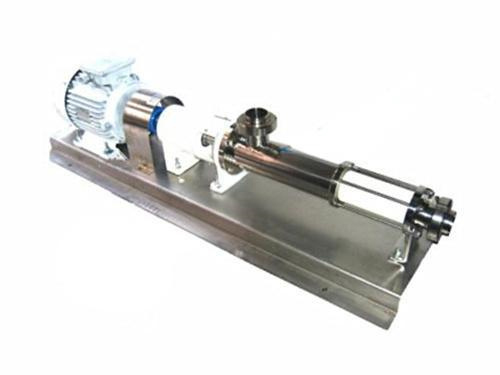

A sludge screw pump, often referred to as a Progressive cavity sludge pump or screw-type sludge pump, is a positive displacement pump designed to handle
thick, viscous, and solids?laden fluids such as primary sludge, secondary sludge, digested sludge, and thickened slurries.
The core pumping element typically consists of a single?helix metal rotor that turns inside a double?helix elastomer stator.
As the rotor rotates, cavities form and progress from the suction side to the discharge side, conveying sludge with minimal pulsation.
This pumping principle makes the sludge screw pump highly suitable for:
Common applications of sludge screw pumps include:
Compared with many other pump types, sludge screw pumps offer:
The following sections break down the most important parameters and decision points that should be analyzed before purchasing and installing a sludge screw pump.
Each factor influences pump performance, life expectancy, power consumption, and total cost of ownership.
Sludge properties are the starting point for any sludge screw pump selection.
Understanding the physical and chemical characteristics of the sludge is essential to choosing the correct pump size, materials, and configuration.
Sludge solids concentration, usually expressed as % dry solids (DS), determines the viscosity and flow behavior.
Typical sludge screw pump applications may handle:
Higher solids content requires a more robust screw pump design, larger motor power, and appropriate rotor/stator geometry to generate enough torque without stalling.
For extremely thick sludge or cake, special hopper?type sludge screw pumps with force?feed augers are often required.
Sludge may behave as a non?Newtonian fluid, with viscosity changing under shear.
Progressive cavity sludge screw pumps handle non?Newtonian sludge very well, but viscosity still influences:
Solid particles in sludge vary from soft organic flocs to hard mineral grit.
For pump selection, it is important to know:
High abrasiveness accelerates rotor and stator wear and may require:
Sludge may contain chemicals such as acids, alkalis, salts, polymers, or coagulants.
Temperature and chemical composition affect:
Sizing a sludge screw pump involves defining the target flow rate and total discharge pressure.
These parameters are fundamental for selecting the pump model, drive, and speed.
Required flow is usually specified in m3/h, l/s, or gpm. Consider:
Because sludge screw pumps are positive displacement pumps, flow is nearly linear with speed.
Using a variable frequency drive (VFD) allows flexible control of sludge flow to match process requirements, reduce energy consumption, and minimize wear.
The discharge pressure is a function of the static head, pipeline friction losses, valves, fittings, and downstream process pressure.
Sludge screw pumps can often handle differential pressures up to several bar per pump stage.
When calculating pressure:
Oversizing pressure capability can lead to unnecessary cost and energy use, while undersizing can cause
system failures or inability to reach the required discharge point.
Once fluid characteristics and system requirements are known, the next step is choosing the most appropriate sludge screw pump design.
Two common configurations are:
Conventional suction inlet pumps – Best for pumpable sludge in the low to medium solids range, usually up to about 8–10% DS (depending on sludge type).
They use a flanged suction port connected to a pipeline or tank.
Hopper?type sludge screw pumps – Designed for high solids or semi?solid sludge and sludge cake.
They incorporate a rectangular or conical feed hopper with a screw conveyor (feed auger) that pushes the sludge into the pumping elements.
Rotor/stator combinations are defined by pitch, diameter, and number of stages.
Critical selection parameters include:
For abrasive sludge, slower speeds and larger geometry are often preferred to extend service life.
The drive unit of a sludge screw pump typically includes:
Important considerations:
Variable speed control is highly recommended for sludge applications to match flow to process demands, prevent overfeeding of dewatering equipment, and reduce pulsation and pressure spikes.
Seal selection is crucial due to the abrasive and sometimes corrosive nature of sludge. Options typically include:
Bearing and shaft support design must withstand radial and axial loads and protect seals from vibration and misalignment.
Choosing the right materials is essential for maximizing pump life when handling difficult sludge mixtures.
Typical rotor materials include:
Sludge containing high levels of grit or sand benefits from hardened, wear?resistant rotor surfaces combined with appropriate stator elastomers.
The stator elastomer must be compatible with the sludge temperature and chemistry. Common elastomer types include:
Selecting the wrong elastomer can lead to swelling, cracking, or rapid wear, causing premature failure of the sludge screw pump.
Pump casing and other wetted metals are typically selected for:
Carbon steels, stainless steels, or coated cast irons are frequently used.
The final choice depends on the presence of chlorides, sulfides, or aggressive chemicals in the sludge.
Proper installation ensures the sludge screw pump operates efficiently and is accessible for maintenance.
Sludge screw pumps provide good suction capability, but poor suction design can still cause problems. Consider:
Discharge lines should be sized to maintain reasonable velocity and friction losses.
Key aspects include:
Sludge screw pumps need sufficient space for:
Horizontal pump installation is most common, but vertical configurations may be used where space is restricted.
Reliable operation of a sludge screw pump depends on appropriate control and protection systems.
Sludge flow can be regulated by:
Dry running is harmful to progressive cavity sludge screw pumps because:
Protection methods include:
Blocked discharge lines or closed valves can cause rapid pressure rise.
To protect the pump and piping system:
Maintenance of sludge screw pumps is largely driven by wear of rotor, stator, seals, and joints.
Considering maintenance needs at the selection stage can significantly reduce lifecycle cost.
Expected service intervals depend heavily on:
Reviewing the expected wear pattern and availability of replacement parts is essential for long?term planning.
A well?selected sludge screw pump should provide:
Gearboxes and bearing housings require regular lubrication or oil changes.
Selection should consider:
The long?term cost of a sludge screw pump is dominated by energy consumption and wear part replacement.
Evaluating efficiency during selection helps minimize overall expenditure.
Efficiency is influenced by:
Operating the pump at a suitable speed, pressure, and temperature range improves efficiency and extends wear life.
Higher speeds generate more flow but increase:
Many sludge screw pump applications benefit from a design where:
When comparing different sludge screw pumps, consider:
The lowest purchase price is rarely the lowest cost solution over the pump lifetime.
Sludge screw pump installations must comply with safety regulations and industry standards.
Understanding the benefits of sludge screw pumps compared with other pump technologies helps justify the selection for sludge applications.
Sludge screw pumps can handle sludges with much higher solids content and viscosity than many centrifugal pumps.
They can transport thick, slow?moving sludge over long distances with relatively low speed and high torque.
The progressive cavity principle produces a smooth, nearly pulsation?free flow.
This stability is advantageous for:
Sludge screw pumps offer strong suction capabilities, making them suitable for:
The moving cavities transfer sludge with relatively low shear compared with high?speed centrifugal impellers.
This is beneficial for:
By selecting the appropriate number of stages, sludge screw pumps can be configured for low or high differential pressures,
allowing flexibility in plant design and pipeline routing.
The table below summarizes the primary selection criteria for a sludge screw pump.
It can be used as a practical checklist during design and procurement.
| Selection Factor | Key Considerations | Why It Matters |
|---|---|---|
| Sludge type and solids content | Primary, secondary, digested, thickened; % DS range | Determines pumpability, required torque, and need for hopper?type design. |
| Viscosity and flow behavior | Fluidity at operating temperature; non?Newtonian behavior | Influences suction conditions, pump size, and speed. |
| Particle size and abrasiveness | Grit content, maximum particle size, presence of rags/fibers | Impacts wear rate, rotor/stator materials, and maintenance intervals. |
| Chemical composition | pH, salts, reactive chemicals, polymers, oils | Dictates elastomer and metal material compatibility and corrosion resistance. |
| Temperature | Minimum, normal, and maximum sludge temperature | Affects viscosity and material selection, especially elastomers. |
| Required flow rate | Minimum, normal, and peak flow (m3/h or gpm) | Determines pump capacity, motor size, and control strategy. |
| Discharge pressure / total head | Static lift, pipeline friction, downstream equipment backpressure | Defines number of stages, pump length, and pressure rating. |
| Installation layout | Available space, inlet configuration, vertical/horizontal mounting | Impacts choice of conventional vs. hopper?type pump and serviceability. |
| Drive and speed control | Fixed or variable speed, local control, power supply | Influences flexibility, energy use, and process control. |
| Sealing arrangements | Packing vs. mechanical seal, single vs. double seal | Controls leakage, maintenance effort, and environmental safety. |
| Materials of construction | Rotor metal, stator elastomer, casing material | Directly affects wear resistance, corrosion resistance, and longevity. |
| Maintenance accessibility | Space around pump, ease of rotor/stator removal | Reduces downtime and labor for routine service. |
| Protection features | Dry?run protection, overpressure protection, temperature monitoring | Prevents catastrophic damage and extends equipment life. |
| Energy efficiency | Expected power draw, speed optimization, drive efficiency | Major contributor to long?term operating cost. |
| Compliance and safety | Mechanical guarding, electrical standards, noise limits | Ensures safe operation and regulatory compliance. |
The following indicative specification table summarizes common ranges for sludge screw pump design.
Actual values depend on individual manufacturer designs and project requirements, but the table offers a useful reference during early project planning.
| Parameter | Typical Range | Comments |
|---|---|---|
| Flow capacity | 0.5 – 250 m3/h (2 – 1100 gpm) | Can be higher for large units; flow is adjustable via speed control. |
| Differential pressure | Up to 24 bar or more, depending on stages | Each pump stage typically provides a limited pressure; more stages yield higher pressures. |
| Solids content | 2 – 18% DS (or higher with special designs) | Higher solids often require hopper?type pumps and stronger drives. |
| Operating temperature | 0 – 90 °C (32 – 194 °F) for standard elastomers | Special materials may allow wider temperature ranges. |
| Viscosity range | From free?flowing up to highly viscous sludges | Progressive cavity design is particularly suited for non?Newtonian viscosities. |
| Rotor material | Hardened steel, stainless steel | Chosen based on abrasion level and corrosion risk. |
| Stator elastomer | NBR, EPDM, or specialty elastomers | Elastomer type must suit chemical environment and temperature. |
| Suction connection | Flanged round suction or rectangular hopper | Hopper inlets are used for thick sludge and sludge cake. |
| Drive type | Gearmotor with VFD or fixed?speed motor with gearbox | VFD recommended for flexible sludge flow control. |
| Seal type | Packing, single mechanical seal, or double mechanical seal | Selected based on leakage tolerance and sludge properties. |
Different sludge handling tasks place different demands on sludge screw pumps.
Tailoring pump selection to the specific application improves reliability and performance.
For relatively low?solids sludge (often 2–6% DS), conventional suction?type sludge screw pumps are usually sufficient.
Key considerations include:
Thickened sludges (6–10% DS) have higher viscosity and may need:
Sludge screw pumps are widely used to feed belt filter presses, screw presses, and centrifuges. For dewatering feed:
Sludge cake at 15–18% DS or higher behaves more like a paste or semi?solid. Such applications generally require:
Industrial sludges may contain oils, chemicals, or unusual solids. In these cases:
Sludge screw pump selection should be integrated into a long?term asset management strategy.
Considering the entire lifecycle from installation to replacement supports reliable and economical sludge handling.
Due to wear from abrasive sludge, key components that may require stocking include:
Planning appropriate spare part levels for critical sludge screw pumps reduces downtime during unplanned maintenance.
Condition?based or time?based maintenance practices can be used:
Existing sludge screw pumps may be upgraded by:
These actions can extend the usable life of installations and improve sludge handling performance without complete replacement.
Selecting the right sludge screw pump requires a comprehensive understanding of sludge characteristics, system design, and lifecycle cost.
By carefully evaluating solids content, viscosity, abrasiveness, flow and pressure requirements, materials of construction, and maintenance needs,
engineers and plant operators can choose a sludge screw pump that delivers reliable service, controlled operating costs, and stable process performance.
When specifying a sludge screw pump, it is essential to collect accurate process data, define performance expectations clearly, and consider not only initial cost
but also long?term energy use, wear, and maintenance. A well?selected sludge screw pump will support efficient wastewater treatment,
effective sludge dewatering, and overall optimization of sludge management operations.
```
