Screw pump system design is a core topic in modern fluid handling engineering.
Whether you are planning a new industrial plant, upgrading an existing pipeline,
or comparing positive displacement pumps for a project, a clear understanding
of screw pump fundamentals is essential.
This guide explains the basics of screw pump system design in clear, SEO-friendly English.
It covers definitions, working principles, major types of screw pumps, key design parameters,
advantages, limitations, specification tables, and typical industrial applications.
The content is vendor-neutral and focuses on industry-standard knowledge that can be applied to
many sectors and project scales.
A screw pump is a type of positive displacement pump that uses one or more
rotating screws to move fluid along the screw axis. As the screws rotate, sealed cavities are formed
between the screw flights and the pump casing. These cavities transport the fluid from the suction side
to the discharge side at a nearly constant flow rate.
In screw pump system design, the pump is typically selected for:
Key Concept: Unlike centrifugal pumps, screw pumps deliver flow that is nearly independent
of discharge pressure, as long as system design limits are respected and slip is controlled.
At the heart of screw pump system design is the principle of progressive displacement.
The screw geometry, casing shape, and clearances are engineered so that closed chambers are formed
and move axially as the screws rotate.
creating low pressure and drawing fluid into the pump inlet.
form sealed or semi-sealed chambers filled with fluid.
screw axis from suction to discharge.
into the discharge line at the required pressure.
Because of this operating principle, screw pump system design is often chosen when low shear
and gentle handling of the product are important, such as in food, cosmetics, and
lubrication systems.
In a well-designed screw pump system:
| Parameter | Screw Pump (Positive Displacement) | Centrifugal Pump |
|---|---|---|
| Flow vs Pressure | Nearly constant flow; pressure depends on system resistance | Flow decreases as discharge pressure increases |
| Best for Viscosity | Low to very high viscosity fluids | Low to medium viscosity fluids |
| Shear on Product | Generally low shear, gentle pumping | Higher shear, may damage shear-sensitive products |
| Flow Pulsation | Low pulsation, smooth discharge | Moderate pulsation, especially with multi-stage systems |
| Self-Priming Capability | Often self-priming | Typically not self-priming without additional devices |
Screw pump system design varies depending on how many screws are used, how they are driven, and how
the fluid chambers are formed. The main categories are:

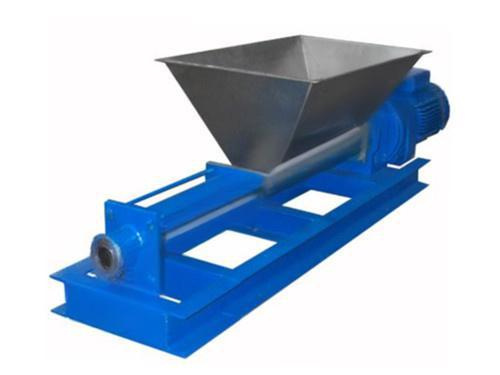

A single screw pump, also known as a progressive cavity pump, has:
Single screw pumps are ideal for:
| Parameter | Typical Range | Notes for System Design |
|---|---|---|
| Flow Rate | 0.1 to 300 m3/h | Depends on rotor size and speed; larger pumps can exceed this range |
| Differential Pressure | Up to 24 bar or more (multi-stage) | Each stator stage adds pressure capability |
| Viscosity | From water-like up to several hundred thousand cP | De-rate speed at high viscosity to limit power and wear |
| Solids Handling | Up to ~40% (by volume), depending on design | Particle size and abrasiveness are critical |
| Operating Temperature | -20°C to 150°C or higher | Limited by elastomer properties and lubrication |
A twin screw pump uses two intermeshing screws rotating in opposite directions inside
a close-fitting housing. Twin screw pump system design is widely used where:
Twin screw pumps can be timing gear driven so that the screws do not contact each other,
reducing wear and allowing gentle product handling.
| Parameter | Typical Range | Design Considerations |
|---|---|---|
| Flow Rate | 1 to 500 m3/h | Available in both small hygienic sizes and large industrial sizes |
| Differential Pressure | Up to ~25 bar (sometimes higher) | Higher pressures require careful screw and bearing design |
| Viscosity Range | 1 to 1,000,000 cP | Speed adjustment is common to cover this range |
| Temperature | -40°C to 300°C (with suitable materials) | Used for hot oils, bitumen, and food products |
| Sanitary Design | Hygienic versions available | Polished surfaces, drainability, and CIP capability |
A triple screw pump uses one driving screw and two idler screws, typically
in a close-tolerance metal housing. It is mainly used for:
| Parameter | Typical Range | Design Notes |
|---|---|---|
| Flow Rate | 0.5 to 200 m3/h | Common in small and medium capacity lubrication systems |
| Discharge Pressure | Up to 160 bar (varies by design) | Well-suited for high-pressure lubrication and hydraulic systems |
| Fluid Cleanliness | Clean, non-abrasive fluids | Solids and abrasives cause rapid wear |
| Viscosity | Low to high viscosity oils | Ideal for lubricating fluids that support hydrodynamic film |
| Typical Applications | Lube oil, fuel oil, hydraulic oil | Power plants, marine, compressors, turbines |
Some screw pump system designs use four or more screws. These are often specialized versions of the
twin or triple screw concept, tailored for:
Effective screw pump system design considers not only the pump itself but also its interaction
with the motor, drive, bearings, seals, suction piping, discharge piping, and control systems.
| Component | Function in System Design | Design Considerations |
|---|---|---|
| Pump Casing / Housing | Encases screws and defines flow path and pressure boundary | Material selection, pressure rating, corrosion resistance |
| Screws / Rotors | Create cavities that move the fluid axially | Geometry, pitch, diameter, material, surface finish |
| Stator (iN Single Screw Pumps) | Forms sealing cavities with the rotor | Elastomer type, temperature and chemical compatibility |
| Bearings | Support axial and radial loads | Lubrication, alignment, load capacity, cooling |
| Mechanical Seals / Packing | Seal rotating shaft where it exits pump casing | Seal type, flush plan, compatibility with pumped fluid |
| Motor | Provides rotational power to the pump | Power rating, speed, efficiency, enclosure type |
| Gearbox / Speed Reducer | Adjusts motor speed to pump design speed | Ratio, torque, service factor, mounting configuration |
| Variable Frequency Drive (VFD) | Controls pump speed for flow regulation | Speed range, starting torque, control strategy |
| Relief Valve / Safety Valve | Protects the system from overpressure | Set pressure, capacity, return line routing |
| Suction and Discharge Piping | Connects pump to process system | Pipe size, length, NPSH, friction losses, supports |
Screw pump system design offers a combination of advantages that are attractive in many industries.
These advantages are often the reason screw pumps are chosen over other positive displacement or
centrifugal pumps.
and provide nearly steady discharge.
differential pressures.
correct design and speed control.
for suction lift conditions.
less NPSH, improving suction performance.
control using VFDs simplifies system regulation.
pumps.
in oil-lubricated conditions can last a long time.
and pharmaceutical processes where hygiene is critical.
common in oil and gas production.
While screw pump systems are versatile, they also present some limitations and design challenges that
must be recognized early in the design phase.
can cause abrasion, particularly in triple screw and tight-clearance metal designs.
elastomer stators, which limit temperature range and chemical compatibility.
can reduce volumetric efficiency and increase heat generation.
for hygienic twin screw designs.
stators or relying on fluid lubrication, must not run dry for extended periods.
Correct screw pump system design starts with proper sizing and selection. The engineer must balance
flow, pressure, viscosity, temperature, and fluid properties to choose a pump type, size, and speed
that deliver reliable performance.
| Parameter | Description | Impact on Design |
|---|---|---|
| Required Flow Rate (Q) | Volume flow needed by the process, usually in m3/h or gpm | Determines pump size and speed |
| Differential Pressure (ΔP) | Difference between discharge and suction pressure | Influences power requirement and pump stage selection |
| Fluid Viscosity | Fluid resistance to flow, often in cP or mPa·s | Affects pump speed, slip, efficiency, and motor power |
| Fluid Temperature | Operating temperature range | Limits material and elastomer choice; affects viscosity |
| Fluid Composition | Clean, lubricating, multiphase, corrosive, abrasive, etc. | Impacts pump type, material, and sealing system |
| NPSHa and NPSHr | Available vs required net positive suction head | Determines suction performance and risk of cavitation |
| Power Supply | Voltage, frequency, and motor speed availability | Defines motor selection and drive configuration |
For screw pumps, a simplified relationship between flow and speed is:
Q = D × n × ηv
Where:
Q = flow rate
D = theoretical displacement per revolution
n = rotational speed
ηv = volumetric efficiency Volumetric efficiency (ηv) is affected by internal leakage. High differential
pressure and low viscosity typically reduce efficiency due to increased slip.
A basic power estimate for screw pump system design is:
P = (Q × ΔP) / (ηtotal × 367) (for metric units with Q in m3/h and ΔP in bar)
Where:
P = power in kW
Q = flow in m3/h
ΔP = differential pressure in bar
ηtotal = overall efficiencyEngineers should apply safety margins and consider real-world pump performance curves rather than
relying only on theoretical formulas.
Beyond pump selection, a screw pump system must be integrated into the plant with proper suction
conditions, piping layout, controls, and protection devices.
| Item | Typical Target | Rationale |
|---|---|---|
| Suction Velocity | 0.5 to 1.5 m/s (approximate) | Lower velocity reduces NPSH losses and air entrainment |
| Number of Elbows | As few as practical | Each elbow adds turbulence and pressure drop |
| Suction Strainer Pressure Drop | < 0.2 bar (clean) | Ensures sufficient NPSHa margin |
system from overpressure.
specific sensitive systems.
Because screw pump flow is proportional to speed, a variable frequency drive (VFD) is often used for:
system demand.
| Strategy | Description | Key Benefit |
|---|---|---|
| Fixed Speed + Bypass | Pump runs at constant speed, excess flow recirculated via bypass | Simple, but energy inefficient |
| Fixed Speed + On/Off Control | Pump switched on and off to maintain tank level or pressure | Low investment cost, but more starts and stops |
| Variable Speed (VFD) | Continuous speed adjustment based on process feedback | Energy efficient, precise flow control |
Screw pump system design is applied in a wide range of industries. The following table provides
a non-exhaustive overview of common uses:
| Industry | Typical Fluids | Common Screw Pump Type | Design Focus |
|---|---|---|---|
| Oil and Gas | Crude oil, multiphase fluids, produced water, lubricating oil | Twin screw, multi-screw, triple screw | High pressure, multiphase handling, reliability |
| Power Generation | Lube oil, fuel oil, hydraulic oil | Triple screw, twin screw | Continuous duty, low pulsation, high reliability |
| Chemical and Petrochemical | Polymers, resins, solvents, acids (with appropriate materials) | Single screw (progressive cavity), twin screw | Chemical compatibility, viscosity variation, accurate metering |
| Food and Beverage | Dairy, sauces, chocolate, juices, syrups | Hygienic twin screw, progressive cavity | Gentle handling, sanitary design, CIP capability |
| Wastewater and Environmental | Sludge, slurry, digested biomass | Single screw (progressive cavity) | Solids handling, abrasion resistance, low speed |
| Marine | Fuel transfer, bilge, ballast, lube oil | Triple screw, twin screw | Compact design, robustness, compliance with marine rules |
Material selection is an essential part of screw pump system design. The pump must resist corrosion,
erosion, and wear while maintaining dimensional stability and effective sealing.
| Component | Common Material | Application Area |
|---|---|---|
| Pump Casing | Cast iron, ductile iron, carbon steel, stainless steel | General industrial, corrosive, or sanitary processes |
| Screws (Rotors) | Alloy steel, nitrided steel, stainless steel | High strength, wear resistance, corrosion resistance |
| Stator (Single Screw) | NBR, EPDM, FKM, other elastomers | Defines sealing line with rotor, limited by temperature and chemicals |
| Seals | Mechanical seals with carbon, ceramic, SiC, tungsten carbide faces | Chosen based on pressure, speed, and fluid composition |
| Bearings | Rolling element bearings, sleeve bearings | Lubricated by oil or pumped fluid depending on design |
by using a magnetic coupling.
A screw pump system design must translate into correct installation and maintenance practices to
ensure long-term performance.
align carefully to reduce vibration and bearing load.
avoid transmitting pipe stress to the pump casing.
and screw or stator removal.
flow meters as needed for monitoring.
in triple screw pumps, clearances are critical.
to reduce downtime.
and change intervals.
For engineering and procurement, it is helpful to organize screw pump system design parameters in a
structured specification sheet. The following table illustrates a generic format.
| Category | Parameter | Typical Entry |
|---|---|---|
| Process Data | Required Flow Rate | 50 m3/h |
| Inlet Pressure | 1.5 bar(abs) | |
| Discharge Pressure | 15 bar(g) | |
| Fluid Viscosity | 500 cP at 40°C | |
| Fluid Properties | Fluid Type | Light fuel oil |
| Temperature Range | 20°C to 80°C | |
| Solids Content | < 50 ppm, non-abrasive | |
| Corrosiveness | Mild, compatible with carbon steel | |
| Pump Requirements | Pump Type | Triple screw pump |
| Mounting | Horizontal, close-coupled | |
| Materials | Casing: carbon steel; Screws: alloy steel | |
| Sealing | Single mechanical seal | |
| Drive and Control | Motor Rating | 22 kW, 400 V, 50 Hz |
| Speed Control | VFD, speed range 500 to 1800 rpm | |
| Protection | Overload relay, temperature sensors, relief valve | |
| Instrumentation | Inlet and outlet pressure gauges, flow meter |
To summarize the key points in screw pump system design, the following best practices can be used
as a checklist during project planning and engineering.
triple screw for clean lubricating oils, and twin screw for hygienic or wide viscosity range duties.
especially when pumping hot or volatile fluids.
consumption and improves suction performance.
the positive displacement nature of screw pumps.
viscosity, or product types.
Understanding the basics of screw pump system design is crucial for engineers, maintenance personnel,
and plant managers who need reliable, efficient, and low-pulsation fluid transfer solutions.
By carefully analyzing process requirements, selecting the appropriate screw pump type, and designing
the overall system with attention to suction conditions, materials, sealing, and speed control,
it is possible to create screw pump installations that operate efficiently and safely over long service lives.
The concepts, definitions, specification tables, and best practices presented here are intended to serve
as a practical reference for planning, comparing, and implementing screw pump systems in a wide range
of industrial applications.
```
Copyright ? Jiangsu Longjie Pump Manufacturing Co., Ltd.
Phone
Comment
（0）
