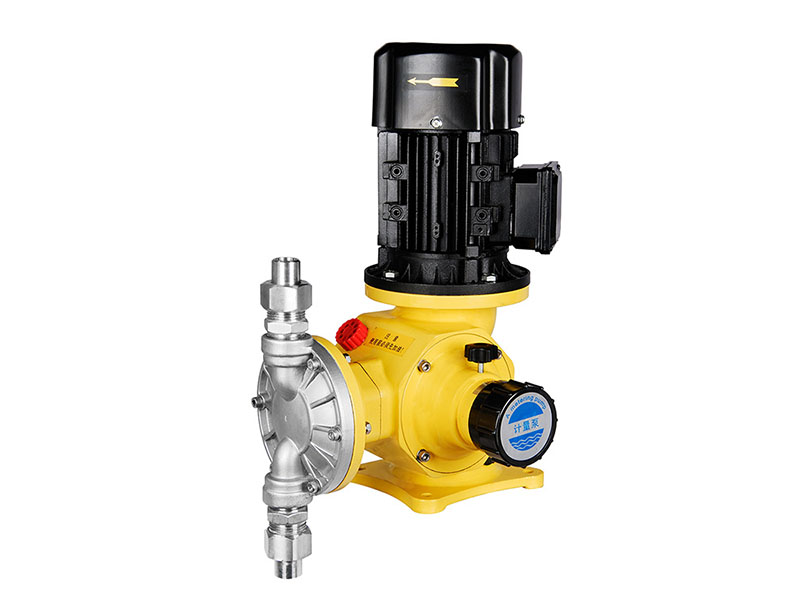

Positive Displacement Pumps: A Comparative Guide
Positive displacement pumps are essential components in fluid-handling systems across chemical processing, oil and gas, food and beverage, water treatment, pharmaceuticals, and many other industries. This comparative guide provides an in-depth, SEO-friendly overview of positive displacement pumps, including definitions, types, working principles, advantages, limitations, selection criteria, and specification tables suitable for engineering, procurement, and project design teams.
A positive displacement pump is a type of pump that moves a fixed volume of fluid for each cycle of operation. Instead of accelerating the fluid to create flow, a positive displacement (PD) pump traps a specific amount of liquid in an enclosed space and forces it from the suction side to the discharge side of the pump. This mechanism generates flow that is nearly independent of discharge pressure, as long as the pump can overcome system resistance.
Constant flow per cycle: Each revolution or stroke displaces a known volume of fluid.
Pressure-dependent load, not flow: Flow is relatively constant; discharge pressure adjusts according to system backpressure.
Self-priming capability: Many positive displacement pumps can self-prime and handle air–liquid mixtures.
Excellent for high-viscosity fluids: PD pumps can efficiently handle viscous fluids that are challenging for centrifugal pumps.
Accurate metering: Precise, repeatable volume per stroke makes PD pumps suitable for dosing and metering applications.
Because of their ability to handle a wide range of viscosities and provide accurate, non-pulsing or controlled-pulsing flow, positive displacement pumps are widely used where process control, dosing accuracy, or gentle handling of sensitive media are required.
Positive displacement pumps and centrifugal pumps are the two broad categories of industrial pumps. Understanding the differences between them is crucial for correct pump selection and reliable system design.
| Feature |
|---|
| Positive Displacement Pump |
|---|
| Centrifugal Pump |
|---|
| Operating Principle |
| Traps and transfers a fixed volume per cycle |
| Imparts velocity to fluid and converts it to pressure |
| Flow vs Pressure Relationship |
| Flow nearly constant; less affected by discharge pressure |
| Flow decreases as discharge pressure increases |
| Viscosity Handling |
| Performs well with high-viscosity fluids |
| Performance degrades significantly with high viscosity |
| Self-Priming |
| Usually self-priming |
| Typically not self-priming |
| Pulsation |
| May produce pulsating flow (depending on design) |
| Provides smooth, continuous flow |
| Typical Applications |
| Metering, dosing, viscous media, slurries, hygienic transfer |
| High-flow, low- to medium-viscosity, general fluid transfer |
| Sensitivity to System Resistance |
| Can generate high pressure; must have relief protection |
| Pressure limited by pump curve; less risk of overpressure |
| Shear on Product |
| Often low-shear, gentle handling (depending on type) |
| Higher shear; may damage shear-sensitive products |
Positive displacement pumps are generally selected when the application demands accurate flow, high pressures at relatively low flow rates, or reliable handling of highly viscous, shear-sensitive, or abrasive fluids.
Positive displacement pumps can be broadly divided into two categories: rotary positive displacement pumps and reciprocating positive displacement pumps. Each category includes several common design types.
| Category |
|---|
| Common Pump Types |
|---|
| Typical Applications |
|---|
| Rotary Positive Displacement Pumps |
External gear pumps
Internal gear pumps
Screw pumps
Lobe pumps
Vane pumps
Progressive cavity pumps
Peristaltic (hose/tube) pumps
| Lubricating oils, polymers, fuels, food-grade liquids, chemicals, sludges, slurries |
| Reciprocating Positive Displacement Pumps |
Piston pumps
Plunger pumps
Diaphragm pumps (mechanically or hydraulically actuated)
| High-pressure washing, boiler feed, metering, chemical injection, dosing, slurry transfer |
While specific designs differ, all positive displacement pumps follow a common two-stage cycle: suction (filling) and discharge (delivery).
Suction: The pump creates an expanding cavity (increasing volume) on the suction side. This causes a pressure drop that draws fluid into the pump chamber.
Discharge: The pump then compresses or closes the cavity (decreasing volume), forcing the trapped fluid out through the discharge port at the required pressure.
The actual mechanism depends on the pump type:
Rotary PD pumps: Use rotating elements such as gears, screws, lobes, vanes, or eccentrically rotating rotors to create and move volumes of fluid.
Reciprocating PD pumps: Use a back-and-forth motion of pistons, plungers, or diaphragms to alternately fill and empty pump chambers through inlet and outlet check valves.
Rotary positive displacement pumps use a rotating mechanism to move fluid. They are particularly suitable for viscous fluids and provide smooth, continuous flow when designed with multiple chambers or rotors.
Gear pumps are one of the most widely used rotary positive displacement pumps. They use meshing gears to trap and move fluid around the gear periphery.
External gear pumps use two identical, intermeshing gears. Fluid is carried in the spaces between gear teeth and the housing from the suction side to the discharge side.
Advantages: Simple design, compact size, good for clean fluids, capable of moderate pressures, relatively low cost.
Limitations: Sensitive to solids, requires lubricity in fluid, can generate noise, clearances must be controlled for efficiency.
Internal gear pumps use an inner gear and a larger outer gear (idler) with fewer teeth. An eccentric arrangement creates cavities for fluid transfer.
Advantages: Good suction lift, smooth flow, suitable for viscous fluids, can handle a wide range of viscosities.
Limitations: Typically used for lower to medium pressures, not ideal for abrasive solids.
Screw pumps use one or more screws rotating in a close-fitting housing. Fluid is trapped between screw threads and casing, moving axially from suction to discharge.
Single-screw (progressive cavity) designs are typically treated as a separate category (see below).
Multi-screw pumps (two-screw or three-screw) are widely used for lubricating oils, fuels, and multiphase fluids.
Advantages of screw pumps:
Low pulsation, smooth flow
High efficiency with medium to high viscosity fluids
Good suction capabilities
Suitable for high-pressure applications in some designs
Limitations of screw pumps:
Sensitive to large solids
Requires accurate machining and close clearances
Typically more expensive than simple gear pumps
Lobe pumps use two or more lobed rotors that rotate in opposite directions within a casing. The lobes do not contact each other but are synchronized by external timing gears. Fluid is carried in cavities between lobes and casing.
Advantages of lobe pumps:
Gentle, low-shear pumping; ideal for shear-sensitive products
Excellent for sanitary and hygienic applications (e.g., food, dairy, pharmaceuticals)
Can handle solids in suspension such as fruit pieces or soft particles
Reversible flow direction in many designs
Limitations of lobe pumps:
Not ideal for very low viscosity fluids at high differential pressures
Performance affected by clearances and wear
Requires clean-in-place (CIP) and sterilize-in-place (SIP) compliance for hygienic services
Vane pumps use a rotor with radial slots that hold sliding vanes. As the rotor turns eccentrically within a casing, centrifugal force or springs maintain vane contact with the casing, forming variable volume chambers that move fluid.
Advantages of vane pumps:
Good suction characteristics
Capable of handling low to medium viscosity fluids
Relatively smooth flow
Can handle some gas entrainment
Limitations of vane pumps:
Wear on vanes and casing; requires maintenance and good filtration
Not suitable for highly abrasive fluids
Generally limited to moderate pressures
Progressive cavity pumps, also known as single-screw pumps or eccentric screw pumps, use a helical rotor rotating inside an elastomeric stator with a double-helix cavity. The interaction creates sealed cavities that progress from suction to discharge as the rotor turns.
Advantages of progressive cavity pumps:
Excellent for very viscous fluids, sludges, and slurries
Low-shear pumping; gentle handling of sensitive media
Can handle solids, fibers, and non-homogeneous mixtures
Relatively low pulsation, nearly continuous flow
Limitations of progressive cavity pumps:
Elastomeric stator subject to wear, swelling, and chemical attack
Flow rate directly proportional to speed—needs speed control for accurate dosing
Not ideal for high-temperature applications where elastomers are unsuitable
Peristaltic pumps use rollers or shoes rotating on a rotor to compress a flexible hose or tube. The squeezing action creates a moving occlusion that pushes fluid toward discharge while suction draws new fluid into the expanding section behind the occlusion.
Advantages of peristaltic pumps:
Fluid is fully contained within hose/tube; no contamination of pump internals
Excellent chemical resistance depending on hose material
Dry-running capability in many designs
Accurate dosing and metering for small to medium flows
Ideal for abrasive slurries and viscous fluids
Limitations of peristaltic pumps:
Hose/tube is a consumable component; requires periodic replacement
Typically limited to low to medium pressures (higher for heavy-duty hose designs)
Pulsating flow unless special dampening measures are used
Reciprocating positive displacement pumps use a back-and-forth motion to move fluid through a pumping chamber. These pumps are usually driven by a crankshaft, cam, or linear actuator and use check valves to control suction and discharge.
Piston pumps use a reciprocating piston moving in a cylinder. On the suction stroke, the piston retracts, drawing fluid into the cylinder via an inlet check valve. On the discharge stroke, the piston pushes the fluid out through a discharge check valve.
Advantages of piston pumps:
Capable of very high pressures
Suitable for clean fluids and moderate viscosities
Good volumetric efficiency
Can be configured as single-acting, double-acting, or multiplex arrangements to reduce pulsation
Limitations of piston pumps:
Pulsating flow requires dampeners for some applications
Sensitive to solid particles that can damage seals and valves
Requires regular maintenance of packing and sealing elements
Plunger pumps are similar to piston pumps but use a plunger that moves through a stationary seal. The sealing arrangement is on the stationary side, making it suitable for high-pressure services.
Advantages of plunger pumps:
Very high pressure capability, often higher than piston pumps
Efficient for low-flow, high-pressure applications
Common in high-pressure cleaning, reverse osmosis, and injection services
Limitations of plunger pumps:
Requires high-quality inlet conditions to prevent cavitation
Not ideal for fluids containing solids or abrasives
Pulsating output that may require pulsation dampeners in process lines
Diaphragm pumps use a flexible diaphragm actuated mechanically or hydraulically to draw in and expel fluid. The pumped fluid is separated from the actuating mechanism by the diaphragm, providing excellent containment.
Advantages of diaphragm pumps:
Leak-free design; ideal for toxic, corrosive, or hazardous fluids
Can handle slurries and fluids containing solids
Self-priming and can run dry for limited periods (air-operated types)
Suitable for low-flow metering and dosing applications
Limitations of diaphragm pumps:
Pulsating flow; dampeners may be needed for smoothness
Diaphragm fatigue and failure over time; requires monitoring
Flow rate can be more limited compared with rotary PD pumps at larger sizes
Accurate, repeatable flow: Fixed displacement per cycle enables precise metering and dosing applications.
High-pressure capability: Many PD pump designs can develop very high discharge pressures relative to their size.
Wide viscosity range: Positive displacement pumps can handle very thin to extremely viscous fluids.
Self-priming: Many designs prime themselves and handle air–liquid mixtures effectively.
Low-shear options: Rotary lobe, progressive cavity, and some screw pumps offer gentle pumping for shear-sensitive products.
Handling of solids: Certain types (e.g., peristaltic, progressive cavity, diaphragm) can pass solids or slurries effectively.
Need for overpressure protection: Because flow is relatively insensitive to pressure, positive displacement pumps must be protected by relief valves or bypass arrangements to avoid damage or system failure.
Pulsation: Many PD pumps generate pulsating flow that may require pulsation dampeners, accumulators, or multi-cylinder designs.
Sensitivity to debris: Some types (gear, screw, piston) require clean fluids and good filtration to prevent wear.
Higher initial cost: For certain technologies, capital cost may be higher than comparable centrifugal pumps.
Maintenance requirements: Wear components such as seals, stators, vanes, hoses, and diaphragms require periodic replacement.
Positive displacement pumps are used wherever consistent flow, high pressure, or viscous fluid handling is required. The following table summarizes common industries and uses for PD pumps.
| Industry |
|---|
| Typical Fluids |
|---|
| Common PD Pump Types |
|---|
| Chemical Processing |
| Acids, alkalis, polymers, solvents, resins, additives |
| Gear, diaphragm, progressive cavity, peristaltic, metering piston/plunger |
| Oil & Gas |
| Crude oil, refined products, injection chemicals, multiphase streams |
| Screw, gear, progressive cavity, plunger, diaphragm |
| Food & Beverage |
| Dairy products, sauces, syrups, chocolate, juices, pastes |
| Lobe, progressive cavity, peristaltic, sanitary diaphragm |
| Water & Wastewater |
| Sludge, slurry, conditioning chemicals, polymers |
| Progressive cavity, peristaltic, diaphragm, piston |
| Pharmaceutical & Biotechnology |
| Active ingredients, buffer solutions, culture media, sterile fluids |
| Sanitary diaphragm, lobe, peristaltic, precision dosing pumps |
| Pulp & Paper |
| Coatings, sizing agents, starch, dyes, thick stock |
| Progressive cavity, gear, diaphragm, screw |
| Mining & Minerals |
| Slurries, tailings, reagents, thickened paste |
| Progressive cavity, peristaltic, diaphragm |
| General Industrial |
| Lubricants, coolants, adhesives, sealants, fuels |
| Gear, vane, screw, peristaltic, piston |
When comparing positive displacement pumps, engineers and specifiers should evaluate the following key parameters. These parameters are frequently listed in pump datasheets and technical offers.
Flow rate (capacity): Typically expressed in L/min, m3/h, or GPM. For PD pumps, the flow rate is often determined by displacement per revolution or stroke and operating speed.
Discharge pressure: Maximum continuous working pressure for which the pump is designed.
Differential pressure: Difference between discharge and suction pressure, which affects pump loading and sealing.
Viscosity range: Minimum and maximum viscosity the pump can handle efficiently (e.g., cP or mPa·s).
Temperature range: Minimum and maximum fluid temperature compatible with pump materials and design.
Solids handling: Maximum particle size and concentration for slurries or fluids containing solids.
Material of construction: Metals (e.g., stainless steel, carbon steel, cast iron) and elastomers (e.g., EPDM, NBR, FKM) compatible with process fluids.
Sealing arrangement: Packing, mechanical seal, magnetic coupling, or seal-less design.
Drive type: Electric motor, hydraulic drive, pneumatic drive, or engine drive.
Speed range: Recommended operating speed range to optimize wear, efficiency, and NPSH performance.
Net Positive Suction Head Required (NPSHr): Minimum NPSH required at pump suction to avoid cavitation.
Efficiency: Volumetric, mechanical, and overall efficiency at design conditions.
The following table provides indicative ranges and qualitative performance metrics for common positive displacement pump types. Values are general guidelines only; actual performance depends on specific design and manufacturer data.
| Pump Type |
|---|
| Typical Flow Range |
|---|
| Typical Pressure Range |
|---|
| Viscosity Capability |
|---|
| Solids Handling |
|---|
| Pulsation Level |
|---|
| Self-Priming |
|---|
| External Gear Pump |
| Up to medium flows (approx. 0.1–200 m3/h) |
| Low to medium (up to approx. 160 bar, depending on design) |
| Low to high viscosity; best with lubricating fluids |
| Limited; clean fluids preferred |
| Low to moderate pulsation |
| Usually good self-priming |
| Internal Gear Pump |
| Low to medium (approx. 0.1–300 m3/h) |
| Low to medium (typically up to ~20–30 bar) |
| Wide viscosity range, including very viscous fluids |
| Limited; not for large or abrasive solids |
| Low pulsation |
| Good self-priming and suction lift |
| Multi-Screw Pump |
| Medium to high (approx. 5–1000 m3/h) |
| Medium to high (up to ~100 bar or more) |
| Low to high viscosity; very adaptable |
| Limited; clean or lightly contaminated fluids |
| Very low pulsation |
| Good self-priming |
| Lobe Pump |
| Low to medium (approx. 0.1–500 m3/h) |
| Low to medium (typically up to ~20 bar) |
| Medium to high viscosity; ideal for pastes and slurries |
| Good; can handle soft solids in suspension |
| Moderate pulsation |
| Good self-priming |
| Vane Pump |
| Low to medium (approx. 0.1–150 m3/h) |
| Low to medium (typically up to ~14–17 bar) |
| Low to medium viscosity |
| Limited; requires relatively clean fluids |
| Low pulsation |
| Good self-priming |
| Progressive Cavity Pump |
| Low to high (approx. 0.1–400 m3/h) |
| Low to high (often up to 24 bar or more per stage) |
| Excellent for very high viscosity fluids and sludges |
| Very good; suitable for slurries with solids |
| Low pulsation |
| Good self-priming |
| Peristaltic Pump |
| Very low to medium (approx. mL/min up to ~100 m3/h) |
| Low to medium (up to ~16 bar for heavy-duty hoses) |
| Wide range, including very viscous and shear-sensitive fluids |
| Excellent; suitable for abrasive slurries and solids |
| Moderate to high pulsation |
| Excellent self-priming and dry-running capability |
| Piston / Plunger Pump |
| Low to medium (approx. 0.01–100 m3/h) |
| Medium to very high (often above 200 bar) |
| Low to medium viscosity, clean fluids |
| Limited; not ideal for abrasive or large solids |
| High pulsation (mitigated by multi-head and dampeners) |
| Self-priming when properly configured |
| Diaphragm Pump |
| Very low to medium (approx. mL/h up to ~100 m3/h) |
| Low to high (depending on design; metering types can reach high pressures) |
| Wide viscosity range |
| Good; can handle slurries and suspended solids |
| Moderate pulsation |
| Very good self-priming; can run dry (air-operated) |
To select the most suitable positive displacement pump for a specific application, engineering and procurement teams should follow a structured evaluation process. The following guidelines highlight the most important considerations.
Flow rate and turn-down: Determine normal, minimum, and maximum flow requirements, including any need for adjustable or variable flow.
Discharge pressure and system resistance: Calculate static head, friction losses, and any additional pressure requirements (e.g., for spray nozzles or filters).
Fluid properties: Identify density, viscosity, temperature, vapor pressure, and compressibility.
Chemical compatibility: Ensure materials and seals are resistant to the fluid and any cleaning or sterilization chemicals.
Solids content: Assess particle size, hardness, concentration, and abrasiveness.
Ambient conditions: Temperature, humidity, and potential for freezing or high heat.
Area classification: Requirements for explosion-proof, flameproof, or intrinsically safe designs.
Sanitary or hygienic requirements: Need for CIP/SIP, electropolished surfaces, and disassemblable components.
Match candidate positive displacement pump types against the defined process requirements:
For high-viscosity fluids: Consider progressive cavity, internal gear, screw, lobe, or peristaltic pumps.
For slurries and solids: Consider progressive cavity, peristaltic, or diaphragm pumps.
For accurate dosing: Evaluate diaphragm metering, piston/plunger, gear, or peristaltic pumps with appropriate control.
For sanitary service: Lobe, hygienic diaphragm, progressive cavity, or peristaltic pumps with certified designs.
For high-pressure, low-flow applications: Piston, plunger, or high-pressure diaphragm pumps.
Capital cost: Initial purchase price of pump, drive, and accessories.
Energy consumption: Efficiency at operating conditions, including variable-speed operation if needed.
Maintenance costs: Frequency and cost of replacing wear components (stators, hoses, diaphragms, seals, bearings).
Downtime impact: Production losses or process risks associated with maintenance interventions.
Overpressure protection: Incorporate relief valves, bypass lines, or pressure-limiting controls as standard for PD pumps.
NPSH and cavitation: Ensure adequate NPSHa relative to NPSHr, consider booster pumps or flooded suction when necessary.
Leak containment: Use sealless designs, magnetic couplings, or diaphragm isolation for hazardous fluids.
Proper installation and operation are critical for maximizing the performance and service life of positive displacement pumps.
Foundation and alignment: Install pumps on a stable baseplate or foundation and ensure precise alignment between pump and driver to reduce vibration and wear.
Piping layout: Minimize suction line length and bends, avoid high points that trap air, and ensure adequate pipe sizing to reduce friction losses.
Suction conditions: Provide adequate NPSH margin; use flooded suction where possible and avoid restrictions such as undersized valves or strainers.
Bypass and relief valves: Install correctly sized relief valves either built into the pump or in bypass lines to protect against overpressure.
Accessibility: Allow space for maintenance activities including seal replacement, hose or stator changes, and inspection.
Start-up procedures: Follow manufacturer guidance for priming, venting air, and gradually bringing the pump up to speed and pressure.
Speed control: Use variable frequency drives (VFDs) or other speed controls to adjust flow and reduce mechanical stress where appropriate.
Monitoring: Monitor suction/discharge pressure, flow rate, vibration, temperature, and power draw for early detection of issues.
Lubrication: Ensure proper lubrication for bearings and gearboxes, following recommended schedules and lubricant grades.
Predictable maintenance practices can significantly extend the operating life of positive displacement pumps and improve system uptime.
Seals and packing: Mechanical seals, packing sets, and o-rings in rotary and reciprocating pumps.
Elastomeric parts: Stators in progressive cavity pumps, hoses in peristaltic pumps, and diaphragms in diaphragm pumps.
Rotating elements: Gears, screws, lobes, vanes, pistons, plungers, and associated bearings and bushings.
Check valves: Suction and discharge valves in reciprocating and diaphragm pumps.
Scheduled inspections: Periodic checks for leaks, unusual noise, vibration, or temperature increases.
Wear monitoring: Measure clearances where applicable and observe for reduced flow or pressure at constant speed.
Spare parts planning: Maintain an inventory of critical spare parts or kits for high-priority pumps.
Condition-based maintenance: Use vibration analysis, thermography, and oil analysis for early detection of mechanical issues.
No single pump type is universally better. Positive displacement pumps excel in applications with high viscosity, high pressure, or where accurate flow and dosing are critical. Centrifugal pumps are typically preferred for high-flow, low-viscosity, general transfer applications where variable flow with changing head is acceptable.
In most installations, yes. Because the flow from a positive displacement pump is not inherently limited by pressure, a blocked discharge line can rapidly generate dangerous overpressure. A suitably sized relief valve or bypass system is a standard safety requirement.
Only certain PD pump types can tolerate dry running, and usually only for limited periods. Peristaltic hose pumps and some air-operated diaphragm pumps can run dry without damage. Gear, screw, lobe, progressive cavity, and piston pumps usually must not be run dry as this can cause rapid wear or failure.
The most common method is speed control using variable frequency drives or other adjustable-speed drives. For some metering pumps, stroke length adjustment is also used. Bypass lines can be used but may reduce energy efficiency if overused.
Yes. Rotary lobe, progressive cavity, diaphragm, and peristaltic pumps can be supplied in sanitary designs with suitable materials, surface finishes, and cleanability features for food, beverage, and pharmaceutical processes.
Positive displacement pumps play a critical role in modern fluid handling systems. By providing nearly constant flow across a wide range of pressures and viscosities, positive displacement pumps enable precise metering, gentle product transfer, and reliable handling of challenging fluids such as viscous slurries, corrosive chemicals, and shear-sensitive formulations.
Rotary positive displacement pumps—including gear, screw, lobe, vane, progressive cavity, and peristaltic designs—offer smooth, continuous flow and are particularly suitable for viscous or solids-laden fluids. Reciprocating positive displacement pumps—such as piston, plunger, and diaphragm pumps—deliver high-pressure capabilities and accurate dosing performance, making them ideal for metering and injection services.
Engineering teams comparing positive displacement pumps should evaluate flow, pressure, viscosity, solids content, chemical compatibility, and life-cycle costs. By aligning pump type with process requirements, system designers can achieve long-term reliability, operational efficiency, and safe performance across a wide spectrum of industries and applications.
```
Copyright ? Jiangsu Longjie Pump Manufacturing Co., Ltd.
Phone
Comment
（0）
