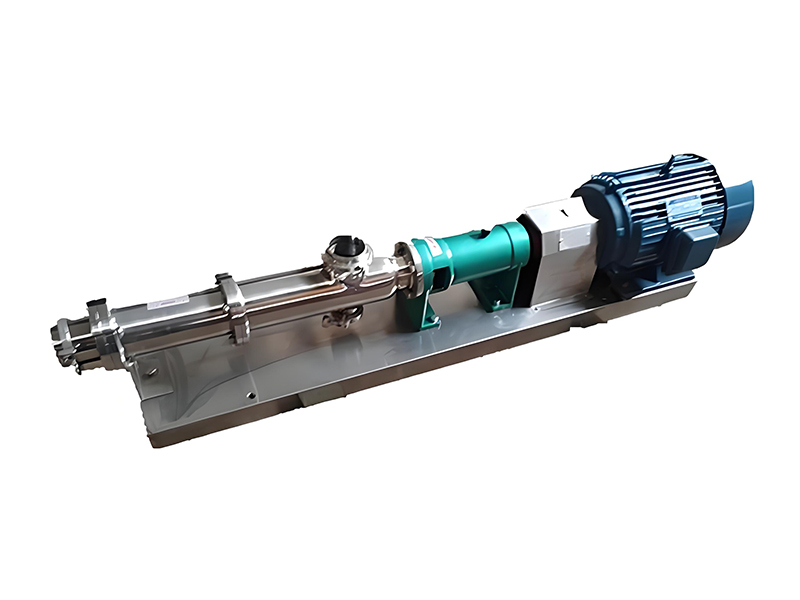

Vertical Screw Pumps in Mining and Mineral Processing

Vertical screw pumps are becoming a critical technology in modern mining and mineral processing plants. Designed to move abrasive slurries, tailings, process water, and recycled reagents, these pumps combine vertical configuration with screw or helical rotor principles to deliver reliable, low-pulsation flow in demanding environments. This guide explains what vertical screw pumps are, how they work, where they are used, and why they are increasingly chosen over traditional pump types in mines around the world.

What Is a Vertical Screw Pump?

A vertical screw pump in mining and mineral processing is a vertical pump configuration that uses one or more helical elements (screws or helical rotors) to convey fluids and slurries from a low point (such as a sump, pit, or tank) to higher elevation or to the next stage of the process. The pump is installed vertically, with the drive and motor above the fluid level, while the pumping elements and wetted parts are submerged or partially submerged in the process fluid.

In mining applications, vertical screw pumps are specifically engineered to handle:

• Abrasive slurries containing sand, crushed rock, and mineral particles
• Dense, viscous tailings and process residues
• Reclaimed process water with suspended solids
• Sludge-like mixtures and fine ore concentrates

Vertical Configuration Explained

The vertical design means that the pump shaft and screw elements are oriented vertically, with the inlet typically at or near the bottom of a sump or tank. This configuration offers several benefits for mining and mineral processing:

• Compact footprint in crowded plant layouts
• Gravity-assisted flooding of the suction side, minimizing suction problems
• Motor and bearing assemblies located above fluid, reducing corrosion risk
• Easy access for inspection of the drive components

How Vertical Screw Pumps Work

Although designs vary, most vertical screw pumps in mining fall into two broad categories:

• Screw centrifugal vertical pumps – use a screw-shaped impeller combined with centrifugal action
• Helical rotor vertical screw pumps – use a single or multiple helical rotor(s) in a stator or casing

Operating Principle

In a typical vertical screw pump:

1. The fluid or slurry enters the pump inlet at the bottom, often from an open sump or tank.
2. A rotating screw or helical element captures the fluid and moves it upward along the length of the casing.
3. The progressive movement of sealed cavities or the combined screw-centrifugal action develops pressure.
4. The pressurized fluid exits at a discharge port located above the fluid level, often near or above the tank top.

The key advantage of the screw geometry is its ability to transport solids-laden fluids with smooth, relatively low-pulsation flow. This is essential for many mineral processing operations where shear-sensitive slurries, unstable froths, or fragile flocculated particles must be transferred without excessive turbulence.

Key Features of Vertical Screw Pumps for Mining

Vertical screw pumps for mining and mineral processing are engineered with specific features to cope with harsh conditions, abrasive media, and continuous or intermittent operation.

Typical Design Characteristics

• Vertical suspended design with top-mounted motor and drive
• Robust shaft supported by bearings above and sometimes within the column
• Heavy-duty screw or helical impeller optimized for solids handling
• Wear-resistant coatings and materials (hardened alloys, rubber, ceramics)
• Open or semi-enclosed pump inlets for handling large particles
• Optional suction strainers or screens to protect the pump

Material Options

Materials are chosen according to slurry abrasiveness, chemical composition, and temperature. Common materials include:

• High-chrome white iron for severe abrasion
• Hardened stainless steels for corrosion and moderate abrasion
• Natural rubber or synthetic elastomer linings for fine, abrasive slurries
• Polyurethane or ceramic-lined components for high wear zones

Applications in Mining and Mineral Processing

Vertical screw pumps are used across virtually every segment of mining and mineral processing. Their vertical design and solids-handling capability make them suitable for many demanding tasks.

Common Application Areas

• Mine dewatering – pumping water and slurry from underground or surface mines
• Sump drainage – removing collected slurry and process spillages from sumps
• Tailings transfer – moving tailings slurry from process plants to tailings storage facilities
• Thickener underflow – handling dense, high-solids underflow from thickeners
• Flotation cells drain and transfer – controlled movement of froth and slurry streams
• Hydrometallurgical circuits – transferring leach slurries and process liquors with solids
• Sand and gravel processing – pumping sand-laden water and mineral fines
• Process water recirculation – moving reclaim water containing suspended minerals

Advantages of Vertical Screw Pumps in Mining

Mining and mineral processing plants choose vertical screw pumps because they combine solids handling capability, energy efficiency, and a compact, maintenance-friendly layout. Compared with some other pump types, vertical screw pumps offer several clear advantages.

1. Excellent Solids Handling and Abrasion Resistance

The screw or helical rotor design provides a large open passage for solids and a gradual acceleration of the slurry. This reduces the risk of clogging and local high-velocity wear. For abrasive slurries, vertical screw pumps can be built with:

• Heavy-duty wear components in high-chrome iron or hardened steel
• Replaceable liners in rubber, polyurethane, or ceramics
• Optimized screw geometry to limit impact and sliding wear

2. Smooth, Low-Pulsation Flow

Mining processes often depend on stable flow rates for accurate separation, flotation, and thickening. Vertical screw pumps typically deliver smoother flow with less pulsation than some positive displacement pumps and lower shear than many centrifugal pumps. This benefits:

• Flotation performance, by preserving bubble-particle attachment
• Polymer and flocculant efficiency, by avoiding over-shearing
• Instrumentation accuracy, by providing stable flow for flow meters and density gauges

3. Reliable Operation in Variable Conditions

Mining operations face fluctuating slurry properties and changing water levels in sumps and pits. Vertical screw pumps can operate under:

• Varying suction depths and submerged conditions
• Changing solids concentrations and particle sizes
• Intermittent or continuous duty cycles

The vertical design keeps the pump primed when installed in a sump, and the screw geometry handles variable feed without losing performance as easily as some other pump types might.

4. Compact Footprint and Easy Integration

Vertical screw pumps require minimal floor space because most of the pump column is installed downwards into a sump or tank. This allows:

• Installation in narrow pits, confined galleries, and under equipment
• Retrofit into existing sumps to upgrade capacity or performance
• Simplified plant layouts with centralized sump pumping stations

5. Maintenance and Safety Benefits

Since the motor and main bearing assembly are above the sump, maintenance staff can access critical components without entering confined spaces or handling contaminated parts. Typical safety and maintenance benefits include:

• Reduced exposure to hazardous slurries and chemicals
• Easier inspection of drive train, couplings, and upper shaft bearings
• Potential for lifting the entire pump column for servicing

6. Energy Efficiency and Lifecycle Cost

Properly selected vertical screw pumps can achieve good hydraulic efficiency in many mining duties. Their ability to handle mixed-phase flow and slurries with large particles often avoids the need for oversized pumps or multiple stages. Over the life of a mine, this can translate into:

• Lower total power consumption per ton of ore processed
• Reduced downtime and maintenance costs due to durable designs
• Fewer replacement parts and longer intervals between overhauls

Comparison: Vertical Screw Pumps vs. Other Mining Pump Types

When selecting pumps for mining and mineral processing, engineers typically compare vertical screw pumps with several alternatives, including horizontal slurry pumps, vertical turbine pumps, and Progressive cavity pumps. The following table summarizes some typical differences.

Typical Specifications for Vertical Screw Pumps in Mining

Actual ratings depend on each project, but vertical screw pumps for mining and mineral processing generally fall into a familiar range of capacities, heads, speeds, and design pressures.

Design Considerations for Vertical Screw Pumps in Mineral Processing

Choosing and configuring a vertical screw pump for a mining application requires careful attention to slurry properties, process requirements, and plant layout. The following factors strongly influence pump performance and reliability.

1. Slurry Characteristics

Important slurry parameters include:

• Solids concentration – expressed by weight or volume; affects viscosity and wear.
• Particle size distribution – fine slurries behave differently from coarse, granular slurries.
• Particle shape and hardness – angular, hard particles increase abrasion.
• Chemical composition – pH and dissolved species can cause corrosion.
• Temperature – influences viscosity, corrosion rate, and material selection.

2. Sump and Pit Design

Sump design is crucial for stable pump operation. Key considerations:

• Ensure adequate submergence of the pump inlet to prevent vortexing and air intake.
• Provide enough sump volume to buffer variable inflows and prevent rapid cycling.
• Shape the sump to minimize dead zones and solids accumulation away from the pump.
• Include screens or trash racks if large debris is expected.

3. Net Positive Suction Head (NPSH)

Although vertical screw pumps typically have favorable suction conditions due to their submerged inlet, NPSH still matters, especially for warm or volatile process fluids. Proper NPSH margin helps:

• Prevent cavitation damage to the screw or impeller
• Maintain stable flow and reduce vibration
• Extend pump seal and bearing life

4. Wear and Liner Strategy

Abrasive wear is a major factor in mining pump selection. Engineers should:

• Select wear-resistant materials in the high-velocity and high-impact regions of the pump.
• Use replaceable wear parts and liners to simplify future maintenance.
• Consider lower pump speeds to reduce wear rate where possible.
• Monitor wear patterns to optimize maintenance schedules.

5. Drive Arrangement and Speed Control

Vertical screw pumps are usually driven by vertical electric motors, often with:

• Direct coupling or flexible coupling to the pump shaft
• Gearboxes where speed reduction or torque increase is required
• Variable frequency drives (VFDs) for speed control and process optimization

Using a VFD can help:

• Adjust flow to match variable process demand
• Reduce energy consumption during low-load periods
• Provide soft-start capability, limiting mechanical stress

6. Shaft and Bearing Design

Vertical screw pumps often have long shafts that must be properly supported and aligned. Typical considerations:

• Heavy-duty bearings located above the fluid, away from corrosive contact
• Intermediate bearings or bushings if the column is long
• Rigid, balanced shaft to reduce vibration and misalignment
• Proper lubrication method (grease or oil) suited to the environment

7. Sealing and Leakage Control

Although many vertical pumps operate with the shaft extending down into the slurry, seals are still required at the top. Options often include:

• Mechanical seals designed for slurry service
• Packed glands with flushing lines for abrasive slurries
• Labyrinth or lip seals for additional protection

Installation and Commissioning Guidelines

Proper installation of a vertical screw pump in a mining or mineral processing plant maximizes uptime and minimizes maintenance. While specific procedures vary by design, several general best practices apply.

Foundation and Support

• Install the pump baseplate on a level, rigid foundation with sufficient mass to absorb vibration.
• Align the pump column vertically to avoid side loading on the shaft and bearings.
• Provide adequate structural support for long columns and heavy motors.

Suction and Discharge Piping

• Ensure a clear path for slurry into the pump inlet, without sharp turns or obstructions.
• Design discharge piping with gradual changes in direction and diameter to minimize friction losses.
• Include isolation valves and, where needed, non-return valves on the discharge side.

Electrical and Control Integration

• Use appropriately rated motors and starters for mine duty, including explosion protection where required.
• Integrate level sensors in sumps with pump controls to prevent dry running.
• Use VFDs where flow variability or energy optimization is important.

Startup and Commissioning

• Verify correct direction of rotation before introducing slurry.
• Check bearing temperatures, vibration levels, and noise during initial operation.
• Gradually ramp up load and speed, observing pressure and flow behavior.

Operation and Maintenance in Mining Environments

Mining and mineral processing environments are harsh, so operation and maintenance of vertical screw pumps must be planned and systematic. Consistent monitoring and preventive maintenance extend pump life and maintain efficiency.

Routine Operational Checks

• Monitor pump discharge pressure and flow rate for deviations from normal values.
• Listen for unusual noises that may indicate cavitation, bearing damage, or clogging.
• Check for visible leaks at the top seal or packing gland.

Regular Maintenance Tasks

• Inspect wear components (screw, liners, casing) at scheduled intervals.
• Lubricate bearings and motor as recommended by the manufacturer.
• Check shaft alignment and coupling condition.
• Clean debris from sumps and screens to maintain good suction conditions.

Condition Monitoring and Predictive Maintenance

Many mining operations adopt condition monitoring to predict pump failures before they occur. Methods include:

• Vibration analysis of motor and pump assemblies
• Thermal imaging to detect hot spots in bearings and electrical connections
• Oil analysis for gearbox and bearing lubrication systems

Energy Efficiency and Process Optimization

Energy consumption in pumping systems represents a significant portion of operating costs in many mines. Optimizing vertical screw pump operation can have a measurable impact on overall plant efficiency.

Flow and Head Matching

Vertical screw pumps should be selected and sized to operate as close as practicable to their best efficiency point (BEP). Oversized pumps running at low efficiency waste energy and may lead to premature wear. Proper matching considers:

• Required flow and head over the entire operating range
• Variability of process conditions over time
• Potential for future capacity increases

Use of Variable Frequency Drives (VFDs)

VFDs enable fine-tuned speed control of vertical screw pumps. Benefits include:

• Lower energy use during periods of reduced demand
• Soft-start functions reducing electrical and mechanical stress
• Better process control in flotation, thickening, and dewatering circuits

System-Level Optimization

Pump efficiency should be considered in the context of the entire pipeline or process system. Attention to the following can yield additional savings:

• Minimizing unnecessary elevation changes in piping
• Reducing friction losses by correct pipe sizing and smooth interior surfaces
• Eliminating redundant valves and restrictions that cause head loss

Safety and Environmental Considerations

Vertical screw pumps in mining and mineral processing must comply with safety standards and environmental regulations. Their design and operation can support risk reduction and environmental protection.

Safety Aspects

• Top-mounted drives and motors reduce exposure to hazardous slurries.
• Guarding around rotating shafts and couplings prevents accidental contact.
• Level controls and dry-run protection help avoid damage and spills.
• Emergency stop systems and lockout procedures are essential in mine settings.

Environmental Protection

Properly managed vertical screw pump systems help control:

• Uncontrolled discharges of tailings and process water
• Overflow of contaminated sumps and ponds
• Dust and emissions by managing water balance and slurry handling

By reliably transporting slurries to treatment plants, tailings facilities, or backfill operations, vertical screw pumps support environmentally responsible mining practices.

Selection Checklist for Vertical Screw Pumps in Mining

Engineers evaluating vertical screw pumps for mining and mineral processing applications can use a structured checklist to ensure all critical factors are considered.

Trends in Vertical Screw Pump Technology for Mining

Vertical screw pump technology is evolving in response to industry demands for higher reliability, better monitoring, and reduced environmental impact. Emerging trends include:

• Improved wear materials such as advanced ceramics, engineered elastomers, and composites.
• Integrated sensors for vibration, temperature, and flow monitoring directly on the pump.
• Digital twins and simulation tools to predict pump performance and optimize designs for specific slurries.
• Modular designs that simplify assembly, transport, and maintenance in remote mines.
• Energy-optimized hydraulics that deliver higher efficiency across wider operating ranges.

Conclusion

Vertical screw pumps play a vital role in modern mining and mineral processing. Their ability to handle abrasive slurries, variable operating conditions, and challenging sump configurations makes them a versatile and reliable solution for many transport duties. By understanding their operating principles, design features, and application factors, mining engineers and plant operators can specify vertical screw pumps that improve process stability, reduce downtime, and lower overall operating costs.

When carefully selected and correctly installed, vertical screw pumps integrate seamlessly into crushing, grinding, flotation, thickening, tailings, and dewatering systems, supporting efficient and sustainable mineral production from the mine to the processing plant.
