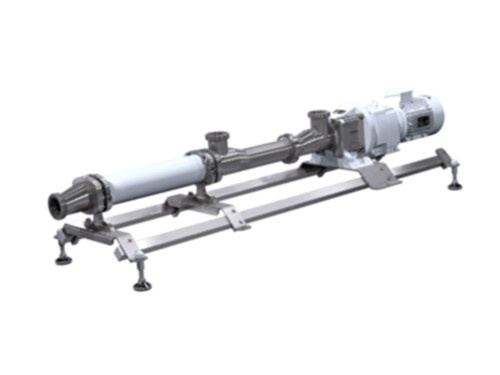

Sludge Screw Pump Applications Beyond Wastewater: A Complete Technical Guide

Sludge screw pumps are widely recognized in municipal and industrial wastewater treatment plants,

but their capabilities extend far beyond conventional sewage and sludge handling.

Thanks to their ability to move viscous, abrasive, and high?solids media with low pulsation and gentle handling,

sludge screw pumps are now used in numerous industries where reliable transfer of difficult materials is essential.

This guide explores sludge screw pump applications beyond wastewater, focusing on

definitions, working principles, advantages, limitations, selection criteria, and typical specifications.

All information is industry?generic and suitable for technical blogs, knowledge bases,

reference pages, and industrial product category pages.

1. What Is a Sludge Screw Pump?

A sludge screw pump is a positive displacement pump designed to handle

sludge, slurry, paste, and other viscous or heterogeneous fluids containing solids.

In many contexts, the term refers to progressive cavity pumps

(single?screw pumps) or multi?screw pumps optimized for sludge and slurry transfer.

Instead of relying on high speed and centrifugal force, a sludge screw pump moves fluid

through sealed cavities created between a rotating screw element and a stationary housing.

This design provides a constant, nearly pulse?free flow that is largely

independent of discharge pressure, making it ideal for difficult media.

1.1 Typical Fluids Handled by Sludge Screw Pumps

• Dewatered sludge (20–45% dry solids)
• Biological sludge and digested sludge
• Industrial process slurries and pastes
• Food and by?product slurries (e.g., meat, fruit, vegetable pastes)
• Mining tailings and mineral slurries
• Paper stock, coating colors, and recycled fiber slurries
• Chemical reactor residues and filter cakes
• Oil, grease, and drilling muds

1.2 Key Characteristics

Common characteristics of a sludge screw pump include:

• Positive displacement volumetric pumping
• Capability to handle high viscosities and shear?sensitive fluids
• High solids handling with minimal clogging
• Low pulsation, steady flow at variable pressures
• Suitability for continuous and intermittent operation

2. How a Sludge Screw Pump Works

While there are multiple screw pump designs, the most common sludge screw pump type in industry

is the progressive cavity screw pump. It consists of a single helical rotor

turning inside a double?helix molded stator. Their interaction creates a series of sealed cavities

that progress from the suction side to the discharge side as the rotor turns.

2.1 Basic Components

• Rotor – Helical metal screw (often hardened steel or stainless steel).
• Stator – Elastomer?lined tube with a double?helix geometry.
• Drive – Electric motor with gearbox or variable frequency drive (VFD).
• Coupling rod – Transmits motion from the drive to the rotor.
• Suction housing – Inlet port, often enlarged or hopper?type for thick sludge.
• Discharge housing – Outlet port to the downstream system.
• Mechanical seal or stuffing box – Prevents leakage around the shaft.
• Baseplate or frame – Structural support for the assembly.

2.2 Operating Principle

1. Fluid enters the suction port or open hopper.
2. The rotating rotor forms cavities with the stator elastomer.
3. As the rotor turns, these cavities progress axially from inlet to outlet.
4. Each cavity traps a fixed volume of sludge or slurry.
5. The fluid is pushed along the pump length and discharged at constant flow.

Because the volume of each cavity is constant and the number of cavities passing per revolution is fixed,

the pump provides a constant flow rate proportional to the speed. This allows

precise control using a VFD, which is a key advantage for many industrial applications beyond wastewater.

3. Sludge Screw Pump vs. Other Pump Types

Selecting a sludge screw pump instead of a centrifugal or diaphragm pump often depends on

the properties of the fluid and system requirements.

4. Advantages of Sludge Screw Pumps for Industrial Applications

The same features that make sludge screw pumps successful in wastewater treatment

also provide benefits in many other industries.

4.1 Handling of High Solids and High Viscosity

• Capable of pumping sludge with high dry solids content, often up to 45% or more.
• Handles highly viscous media: pastes, filter cakes, thick slurries, and dewatered residues.
• Can move materials that behave more like a solid than a liquid, especially with hopper?type inlets and auger feed.

4.2 Gentle, Low?Shear Pumping

• Low internal velocities and smooth cavities reduce product damage.
• Suitable for shear?sensitive substances such as food products, polymers, and biological slurries.
• Minimizes degradation of flocs in thickened sludge and polymer?conditioned materials.

4.3 Accurate, Stable Flow Control

• Flow rate is directly proportional to rotational speed.
• Ideal for dosing, feeding, and metering applications.
• Works well with variable frequency drives (VFDs) for process control.

4.4 Ability to Develop High Pressure

• Multiple stages can reach significant discharge pressures.
• Suitable for long pipelines, high head requirements, and pressurized systems.
• Reduces the need for booster pumps in many transfer lines.

4.5 Wide Material Compatibility

• Multiple rotor materials (alloy steel, stainless steel, coatings) for corrosion and wear resistance.
• Broad selection of stator elastomers to suit chemical and temperature conditions.
• Ability to handle abrasive, corrosive, and oily sludges with the correct material combination.

4.6 Easy Integration in Complex Processes

• Can be mounted horizontally or vertically.
• Available with open hopper inlets, bridge?breakers, and integrated screw feeders.
• Compatible with level sensors, pressure sensors, and PLC?based control systems.

5. Limitations and Considerations

Although sludge screw pumps offer significant advantages, engineers should also consider their limitations and operating requirements.

• Wear of rotor and stator: Abrasive slurries and dry running can accelerate wear.

  Proper design of suction conditions and monitoring is essential.

• Sensitivity to dry running: Elastomer stators can overheat without lubrication.

  Protection devices such as dry?run sensors are recommended.

• Initial cost vs. centrifugal pumps: Capital cost is commonly higher, but

  offset by lower energy use and better process reliability for viscous media.

• Length of the pump: Multi?stage designs can be long, influencing layout and footprint.

• Temperature limits: Depend on elastomer; very high temperatures may require special materials or alternative solutions.

• Cleaning requirements: In hygienic or food applications, cleanability must be considered, possibly requiring CIP?optimized designs.

6. Sludge Screw Pump Applications Beyond Wastewater

The term “sludge screw pump” is often associated with sewage plants, but similar pump technology is used in

many sectors. Below are detailed examples of sludge screw pump applications beyond traditional wastewater.

6.1 Food and Beverage Industry

In food processing, viscous and particulate?laden materials must be transferred gently to avoid damage

and maintain product quality. Sludge screw pumps are used for:

• Meat and poultry by?product slurries
• Fruit pulps, purees, and mash
• Vegetable waste slurries
• Spent grain and brewery waste
• Dairy by?products, cheese curd slurries, and whey concentrates
• Concentrated sauces, pastes, and thick mixtures

Because a sludge screw pump delivers a controlled, pulsation?free flow, it can feed

dewatering presses, heat exchangers, mixers, and cookers efficiently.

With appropriate material choices and hygienic design options, these pumps support sanitary production.

6.2 Biogas and Renewable Energy

Biogas plants require robust pumping equipment to move organic substrates, digested residues, and

thickened sludges. Sludge screw pumps are widely used to:

• Transfer feedstock mixtures such as manure, food waste, and agricultural residues
• Feed anaerobic digesters with homogenized slurries
• Unload fermenter contents and digested sludge
• Transport dewatered digestate to storage or further treatment

The low shear generated by sludge screw pumps helps preserve the structure of biological flocs and

supports stable digester performance. Their pressure capability allows flexible plant layouts with long pipelines.

6.3 Pulp, Paper, and Recycling

The pulp and paper industry processes fiber suspensions and coating mixtures with high solids content and

challenging rheology. Typical sludge screw pump applications include:

• Transferring paper stock sludge and recycled fiber slurries
• Handling deinking sludge and flotation froth residues
• Pumping coating colors, fillers, and starch solutions
• Feeding screen rejects and pulper residues to disposal systems
• Moving thickened fiber cake from belt presses and screw presses

Sludge screw pumps efficiently transfer these mixtures without significant fiber damage,

maintaining process stability and reducing clogging issues common with other pump types.

6.4 Mining and Mineral Processing

Mining and mineral processing operations generate highly abrasive slurries and thick tailings.

Sludge screw pumps are often applied where conventional centrifugal slurry pumps struggle due to viscosity or

the need for accurate low flow.

• Feeding filter presses with high?density mineral slurries
• Transferring thickened tailings and mine backfill
• Handling flotation concentrates and froth products
• Pumping sludge from clarifiers and settlement ponds
• Dosing reagents and polymer solutions with higher viscosity

With carefully selected wear?resistant materials, sludge screw pumps offer reliable operation and manageable

maintenance intervals in abrasive environments.

6.5 Chemical and Petrochemical Industries

In chemical processing, sludge screw pumps are used for viscous intermediates, side streams, and residues.

Typical applications include:

• Transferring reactor sludge and polymer slurries
• Handling filter cakes from vacuum or pressure filtration units
• Feeding evaporators, dryers, or incinerators with pasty residues
• Moving oil?containing sludges and tank bottom sediments
• Dosing thick additives, binders, pigmented pastes, or stabilizers

Correct selection of elastomers and metallic materials ensures compatibility with solvents,

acids, caustics, and hydrocarbons. Explosion?proof drives and seals can be used in hazardous areas.

6.6 Oil, Gas, and Drilling

Sludge screw pumps are suitable for various upstream and downstream oil and gas tasks where sludge and

viscous mixtures must be moved with reliability:

• Drilling mud transfer and recirculation
• Tank bottom sludge removal and transfer
• Oil?water?solid sludge pumping for treatment or disposal
• Pumping heavy fuel oil, bitumen, and emulsions
• Feeding desanders, separators, and treatment systems

Because the pump output is independent of pressure, it can maintain a steady supply to separators and

treatment units, improving process control in upstream and downstream operations.

6.7 Construction Materials and Ceramics

Production of building materials involves handling of cement slurries, gypsum, clay, and ceramic mixtures.

Sludge screw pumps handle:

• Cementitious slurries and grout
• Clay?based slurries and ceramic body slips
• Plaster and gypsum sludges
• Tile and brick production residues
• High?density slurry feeds to forming equipment

The ability to develop high pressure with high?solids paste makes sludge screw pumps suitable for feeding

long distribution lines and pressurized forming equipment.

6.8 Agriculture and Animal Processing

Agricultural operations and animal processing facilities produce organic sludges, manures, and by?products

that must be conveyed to storage, digesters, or treatment units. Sludge screw pumps are used to:

• Transfer liquid and semi?solid manure
• Feed separators and screw presses in manure treatment systems
• Pump slaughterhouse waste slurries and offal mixtures
• Move biomass slurries to biogas digesters
• Handle thick bedding containing straw or fibrous material

The high solids tolerance and gentle pumping action support continuous, clog?free operation even with

fibrous and heterogeneous organic mixtures.

7. Common Operating Modes and Configurations

To suit the wide range of applications, sludge screw pumps are offered in several configurations and

installation arrangements.

7.1 Open Hopper and Feed Screw Designs

For highly viscous or dewatered sludge, a hopper inlet is often used.

The pump is equipped with:

• An enlarged open hopper that receives sludge directly from a conveyor or dewatering device.
• A horizontal or vertical auger (feed screw) that pushes the material into the pumping elements.
• Optional bridge?breaking devices to prevent material from arching over the screw.

This configuration is common in dewatered sludge transfer, filter cake handling, and other high?solids tasks.

7.2 Suction Lift and Flooded Suction

• Flooded suction – The fluid level is above the pump suction, ensuring reliable priming and minimized wear.
• Suction lift – The pump draws fluid from below its centerline; used where flooded suction is not possible but must be designed carefully to avoid air entrapment and dry running.

For very thick sludge, flooded suction or short suction lines are generally preferred to reduce NPSH issues and improve reliability.

7.3 Skid?Mounted and Mobile Units

Sludge screw pumps can be installed as:

• Fixed units on baseplates for permanent process integration.
• Skid?mounted systems with integrated controls and instrumentation.
• Trailer? or truck?mounted mobile pumps for temporary sludge removal or emergency operations.

7.4 Multi?Stage Designs

To achieve higher discharge pressures, multiple pumping stages are arranged in series within a single pump body.

Each stage adds incremental pressure, allowing the pump to overcome large static heads and frictional losses.

8. Selection Criteria for Sludge Screw Pumps

Correct selection of a sludge screw pump involves evaluating the properties of the pumped medium

and the hydraulic requirements of the system. The following criteria should be considered during design.

8.1 Medium Characteristics

8.2 Hydraulic Requirements

• Required flow rate – Determines pump size, number of stages, and speed range.
• Discharge pressure and pipeline length – Dictate number of stages and drive power.
• NPSH conditions – Affect suction arrangement and pump speed.
• Control strategy – Fixed?speed or variable?speed drive based on process needs.

8.3 Mechanical and Environmental Constraints

• Available installation space and orientation.
• Access for maintenance and replacement of stator and rotor.
• Noise and vibration limits.
• Ambient temperature and environmental exposure.
• Hazardous area classification (ATEX or similar) if explosive atmospheres may be present.

8.4 Maintenance Strategy

Maintenance requirements affect lifetime operating costs and availability:

• Ease of rotor and stator replacement.
• Seal type (mechanical seal vs. packing) and accessibility.
• Availability of wear parts and compatibility with existing inventories.
• Planned downtime intervals and maintenance skill level on site.

9. Typical Technical Specifications

The following tables present typical ranges of technical specifications for industrial sludge screw pumps.

Actual values depend on size, design, and manufacturer.

9.1 Hydraulic Performance Range

9.2 Materials of Construction

9.3 Typical Operating Limits

10. Integration with Upstream and Downstream Equipment

In complex process lines, sludge screw pumps serve as critical links between various pieces of equipment.

Proper integration is key to performance and reliability.

10.1 Upstream Equipment

• Dewatering systems (belt presses, centrifuges, screw presses, filter presses).
• Mixers and homogenizers that prepare feed slurries.
• Storage tanks, hoppers, and silos containing thickened materials.
• Screening units and grinders that reduce solids size.

When placed directly under dewatering devices, open hopper sludge screw pumps can receive high?solids cake

without additional conveyors, reducing system complexity.

10.2 Downstream Equipment

• Thermal dryers and evaporators.
• Incinerators and combustion equipment.
• Biogas digesters and fermentation reactors.
• Mixers, blenders, and reactors in chemical processes.
• Long pipe networks to storage, disposal sites, or land application systems.

Since sludge screw pumps deliver constant flow even against variable backpressure, they often feed

downstream equipment more reliably than pulsating or flow?dependent pumps.

11. Control, Monitoring, and Protection

Advanced control and monitoring improve the reliability of sludge screw pump systems, particularly

in heavy?duty industrial applications.

11.1 Speed Control

• Variable frequency drives (VFDs) are commonly used to adjust pump speed and match process requirements.
• Slow?speed operation reduces wear and energy consumption for highly viscous sludge.
• Automatic speed adjustment can maintain constant flow despite changing feed conditions.

11.2 Protection Systems

• Dry?run protection using temperature sensors or power monitoring to stop the pump if lubrication is lost.
• Overpressure protection via pressure switches or relief valves to prevent mechanical damage.
• Level control in feed hoppers and tanks to avoid running empty.
• Torque monitoring to detect blockages, excessive solids, or mechanical faults.

11.3 Instrumentation

• Flow meters for verifying actual transferred volume.
• Pressure transmitters at suction and discharge for system health monitoring.
• Vibration and temperature sensors on bearings and seals.
• Integrated PLC control panels for remote supervision and data logging.

12. Installation and Layout Best Practices

Correct installation improves performance and extends pump life, especially in demanding sludge applications.

• Ensure short, direct suction lines with minimal elbows and restrictions.
• Use tight, well?sealed suction piping to prevent air ingress.
• Allow adequate clearance around the pump for maintenance and part replacement.
• Align the pump and drive accurately to prevent excessive vibration or coupling wear.
• Provide robust foundations to handle dynamic loads and prevent misalignment.
• Install appropriate isolation valves and flushing connections for service operations.

13. Maintenance and Service Considerations

Sludge screw pump maintenance centers on wear components, seals, and lubrication. A preventive approach

maximizes uptime and protects process continuity.

13.1 Routine Maintenance Tasks

• Inspect rotor and stator for wear, scoring, or swelling.
• Check seals for leakage; adjust packing or replace mechanical seal if needed.
• Verify lubrication of bearings and gearbox according to manufacturer recommendations.
• Monitor power consumption and noise; abrupt changes may signal internal issues.
• Clean strainers or upstream screens to avoid feeding large foreign objects.

13.2 Factors Influencing Wear

Wear rates depend on several factors:

• Abrasive particle concentration and hardness.
• Pump speed (higher speed typically increases wear).
• Frequency and duration of dry running or cavitation events.
• Match between elastomer type and chemical environment.
• Operating temperature and thermal cycling.

14. Environmental and Energy Considerations

When applied beyond wastewater, sludge screw pumps continue to support environmental and energy objectives.

• Energy efficiency: Positive displacement pumping of viscous media

  typically consumes less energy than forcing the same media through centrifugal pumps.

• Process optimization: Steady, controllable flow helps optimize

  biogas yield, drying efficiency, or reactor performance.

• Reduced leakage and emissions: Well?sealed systems minimize spills

  and fugitive emissions of contaminated or odorous sludges.

• Support for resource recovery: Reliable pumping of sludges and by?products

  enables conversion to energy, fertilizers, or secondary raw materials.

15. Summary: Why Use Sludge Screw Pumps Beyond Wastewater?

Sludge screw pumps, especially progressive cavity types, are much more than just wastewater pumps.

Their ability to handle viscous, abrasive, and solid?laden media, combined with

low pulsation, accurate metering, and high pressure capability, makes them valuable in:

• Food and beverage processing
• Biogas and renewable energy production
• Pulp, paper, and recycling industries
• Mining, mineral processing, and tailings management
• Chemical and petrochemical plants
• Oil, gas, and drilling operations
• Construction materials and ceramics manufacturing
• Agriculture and animal processing

When engineers understand how sludge screw pumps work, how they compare with alternative technologies,

and how to select them based on fluid properties and system demands, they can leverage their benefits

across a wide range of industrial processes. For any application requiring the controlled transfer of

heavy, viscous, or high?solids media, sludge screw pumps are a strong candidate well beyond the boundaries

of conventional wastewater treatment.
